Type | External |
Casing Colour | Shiny Silver, Anti-Acid Painting |
Capacity | 28 |
Built-In Pump | No |
Gas Type | NG / LPG |
Input Rating Max (kcal/h) |
50,200 kcal/h |
Input Rating Min (kcal/h) |
2,800 kcal/h |
Operation | 220v-240v / 50Hz |
Factory Preset Temp | 42,50,55,60,65,75,85°c |
Fixed Temp By Dipsw | 65°c |
Remote Controller | Optional |
Total Supply Points | 4-5 *Supply Point : The number of point the Gas Hot Water Heater can supply depends on water pressure, ambient water temperature and the outlets’ water flow capacity. |
Product Weight (kg) |
20 |
Product Size (W x D x H)(cm) |
35.7 x 26.5 x 58.3 |

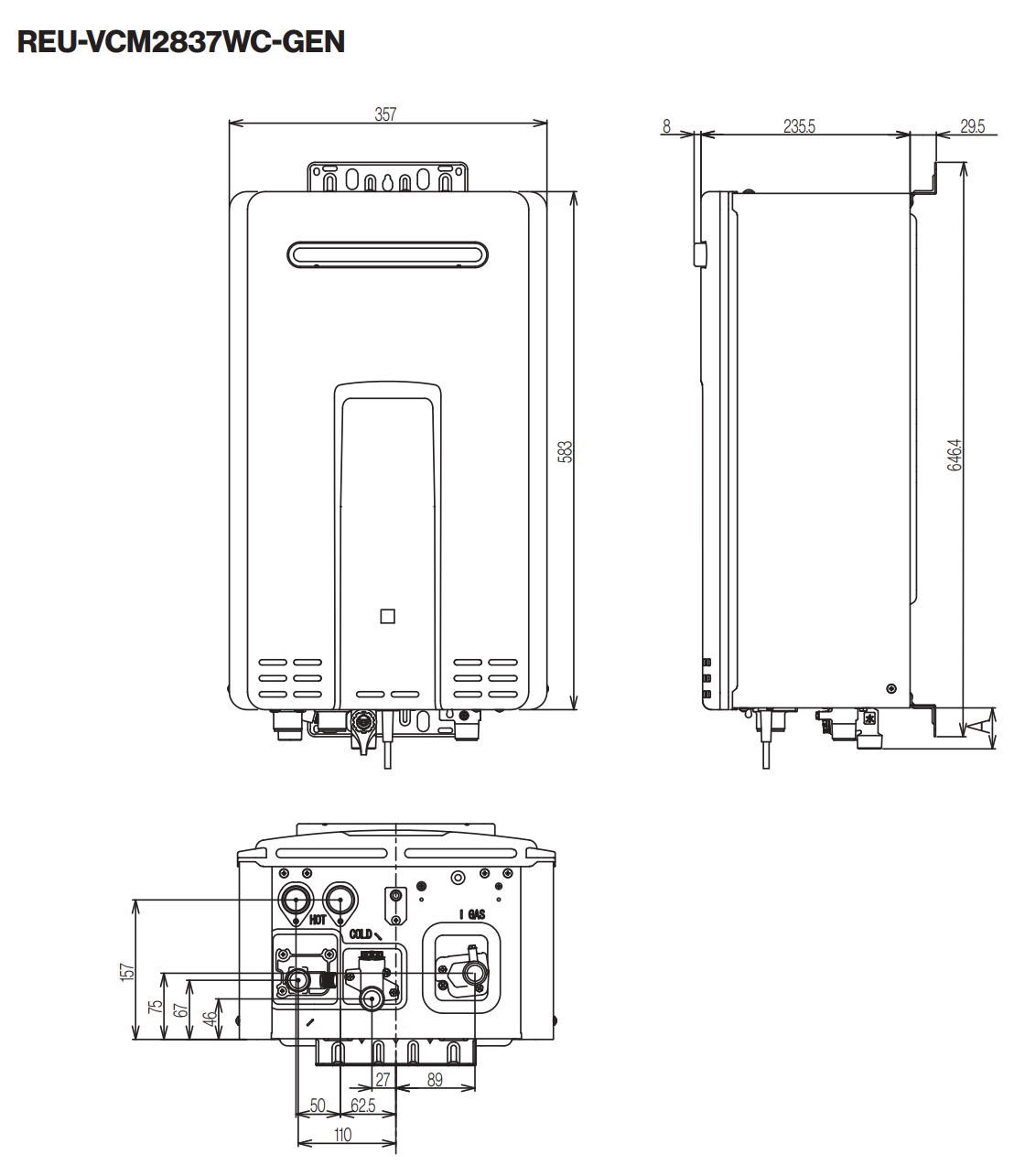

Technical Diagram |
