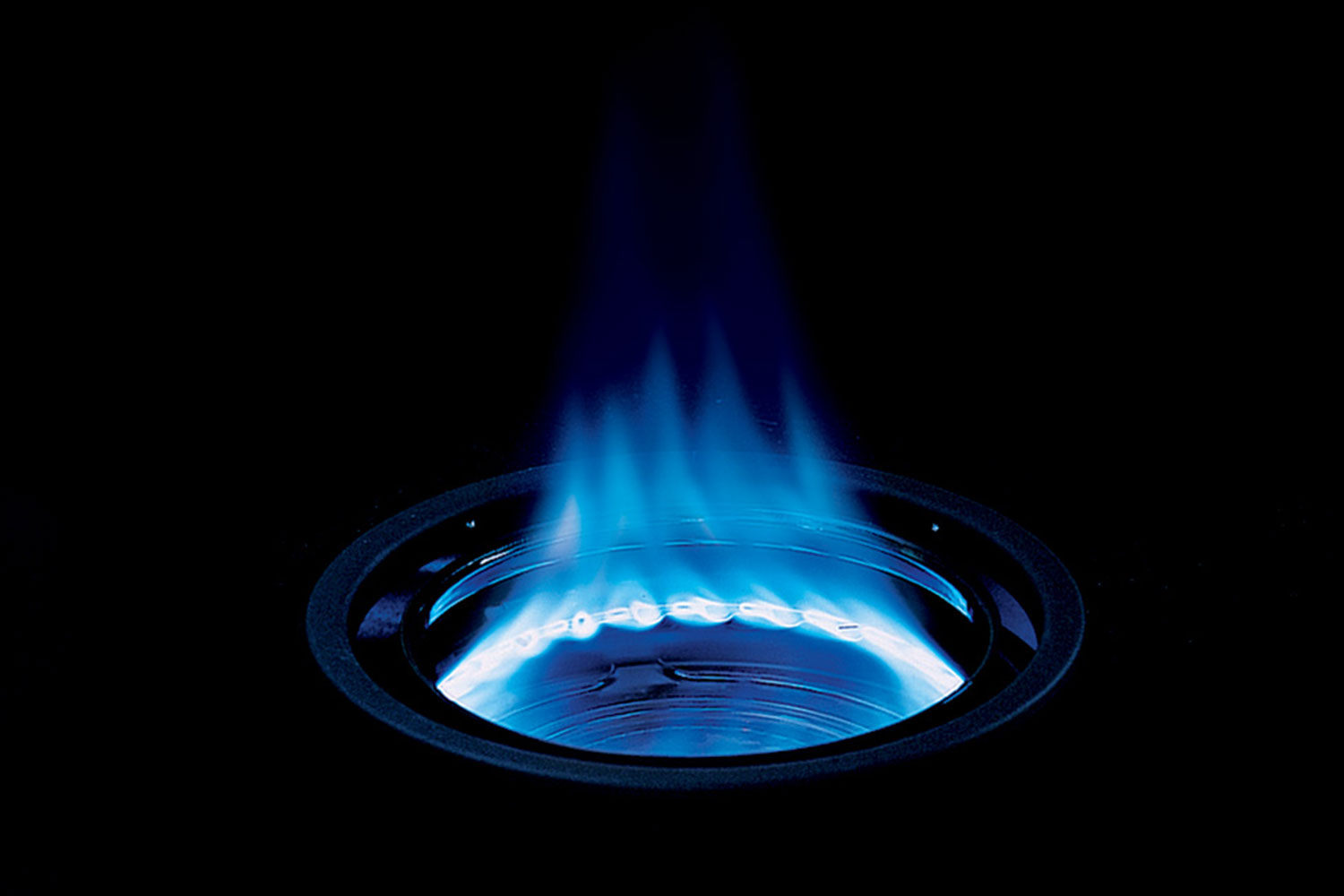

Rinnai’s Original Combustion Technology
Armed with 52% heat efficiency (JIS Standard), Japan’s Inner Flame burner cooks faster and uses lesser gas than conventional gas hobs with 40% heat efficiency.
Greennovation
The ‘Greennovation’ platform is a breakthrough idea that brings together a synergy of ‘innovative technology’ and ‘environmental sustainability’.

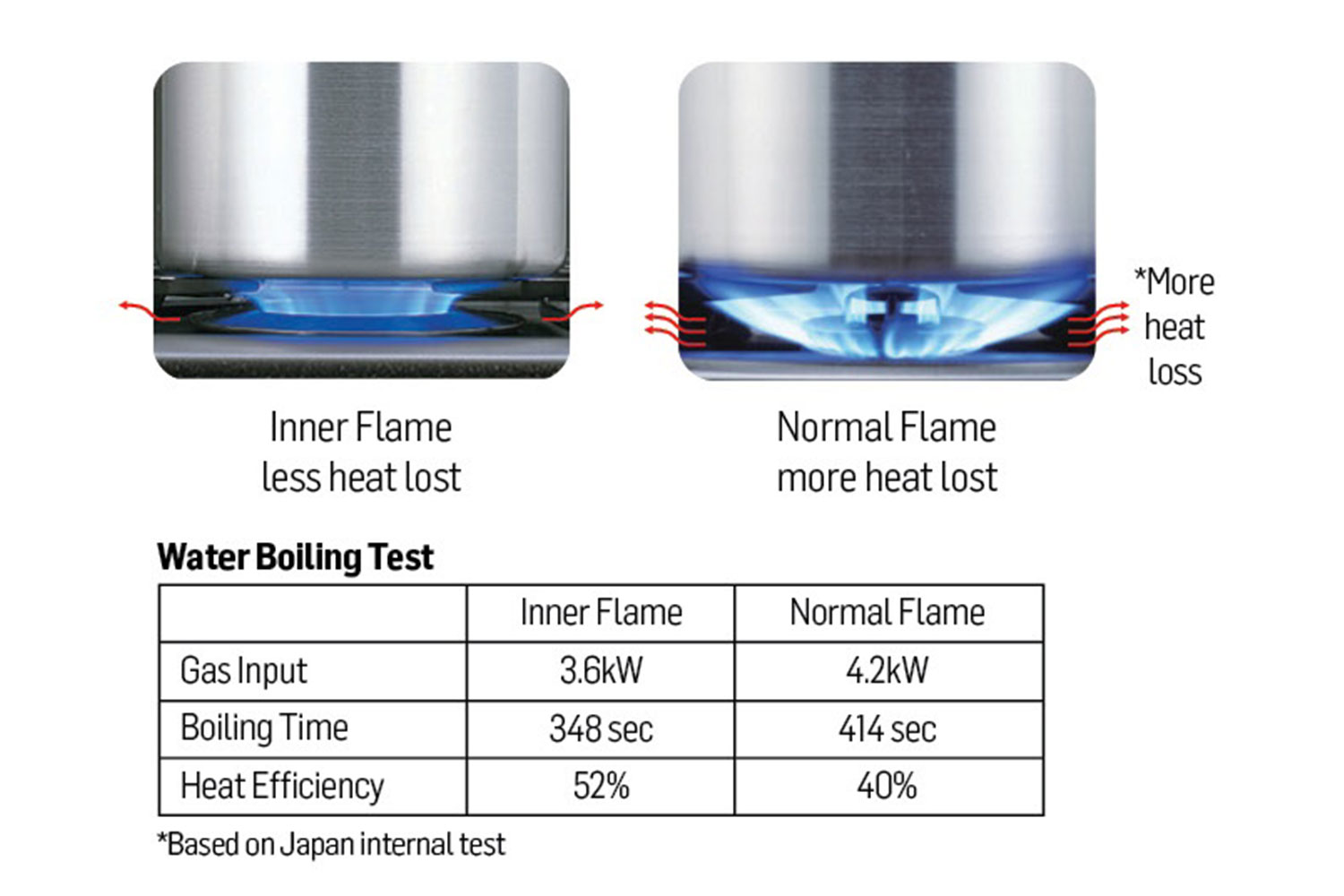

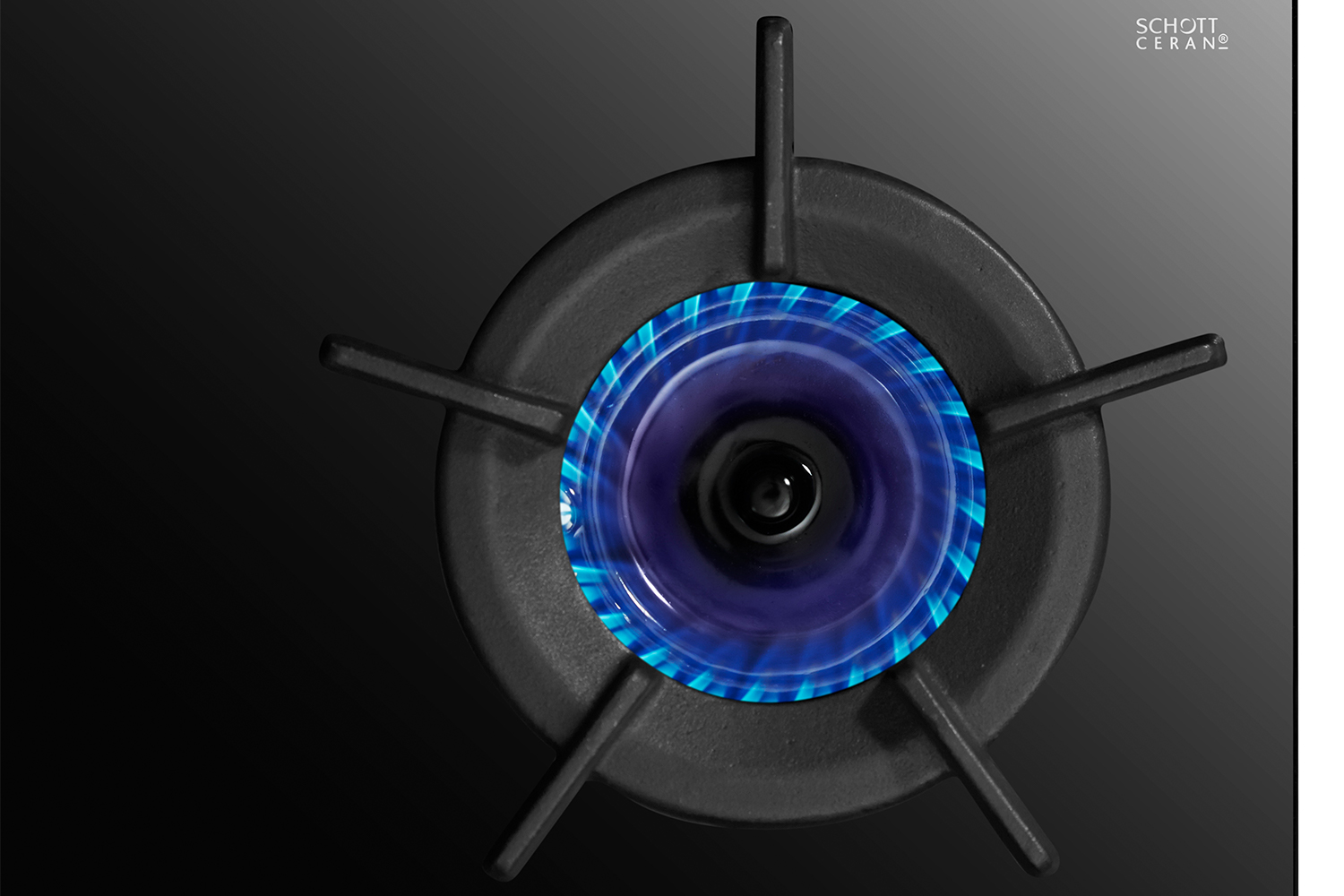

Inner Flame vs Normal Flame
Less heat lost vs more heat lost.

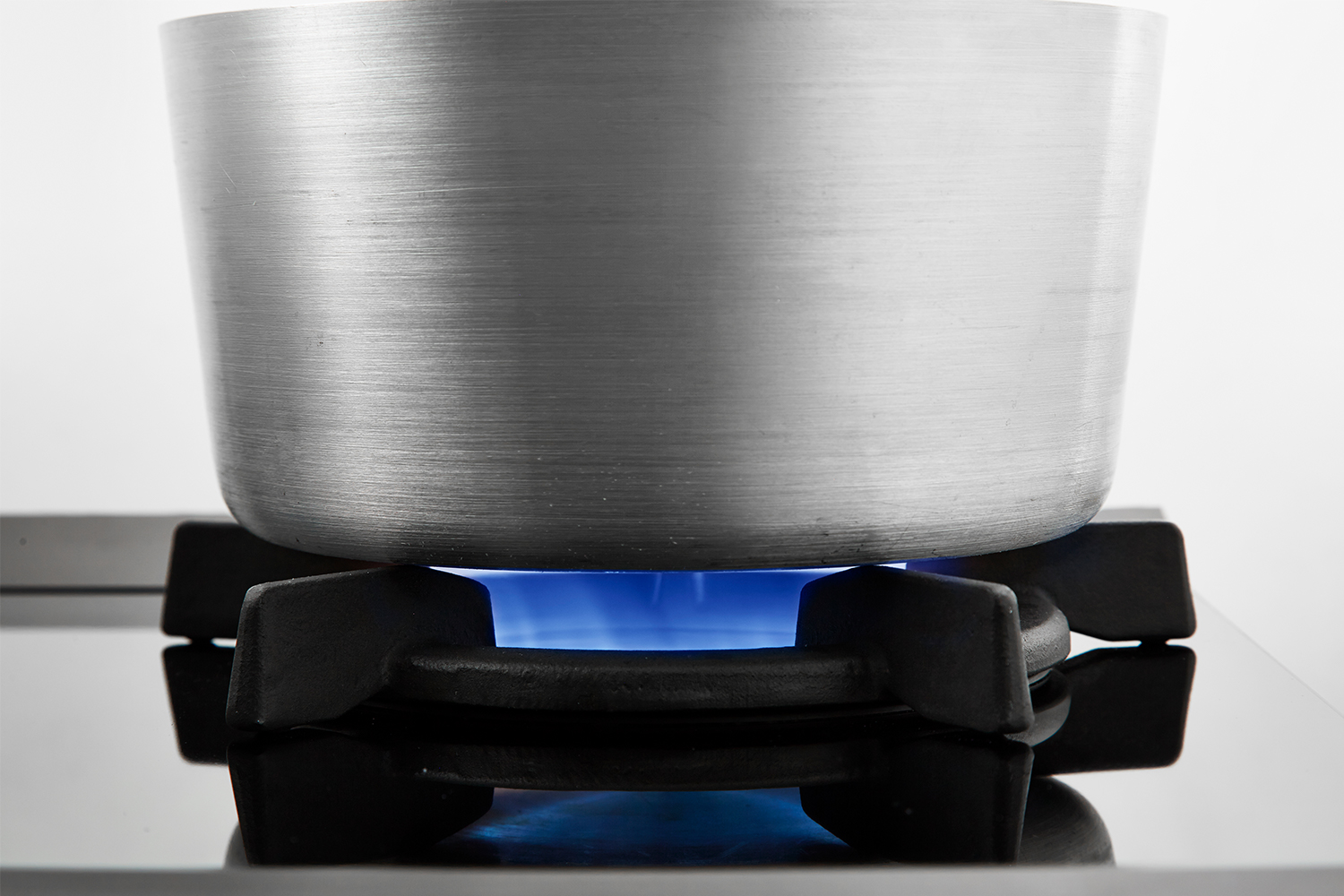

Save Gas and Cooking Time

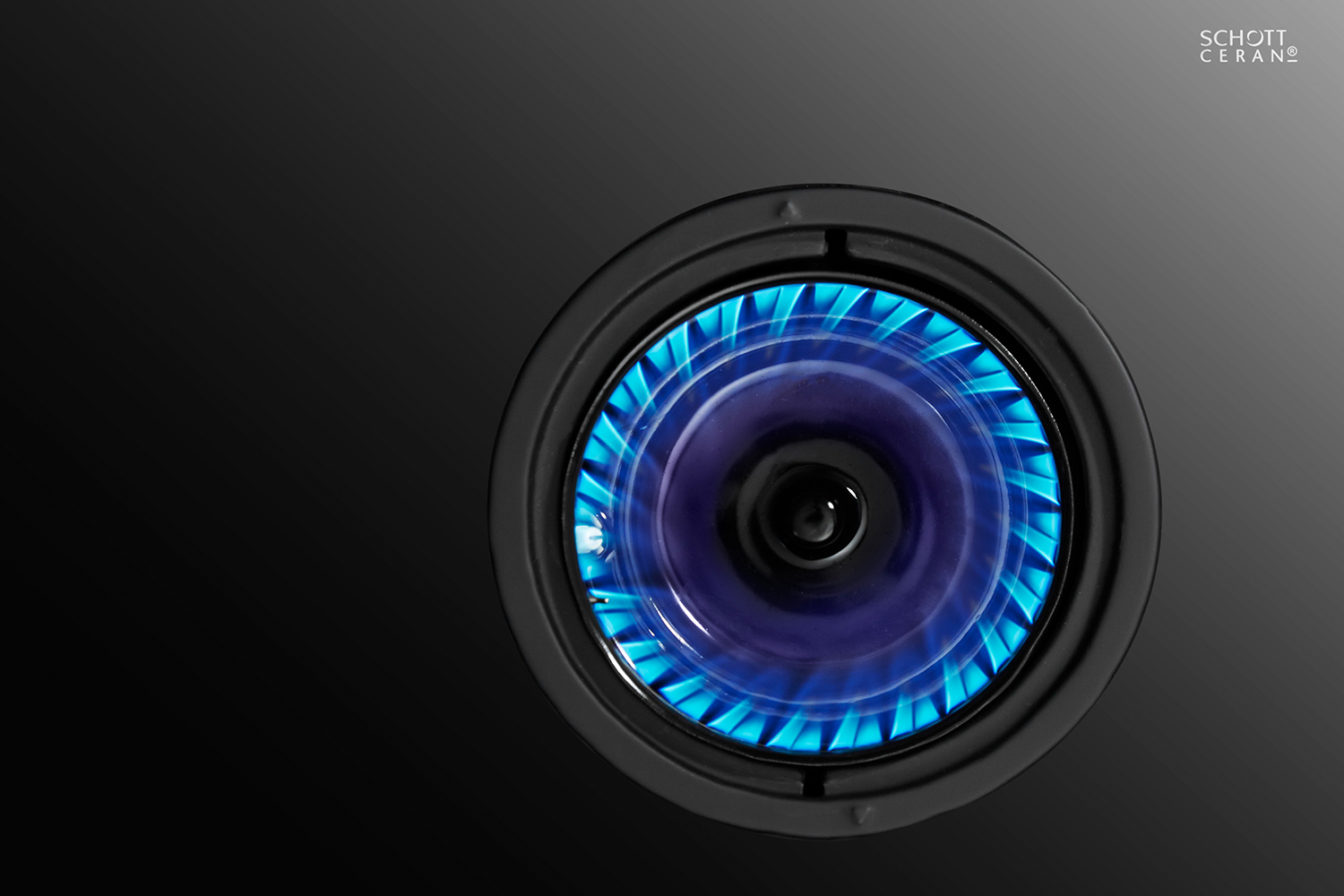

The Inner Flame burner helps reduce energy – it heats the cookware from the middle – resulting in less heat lost.

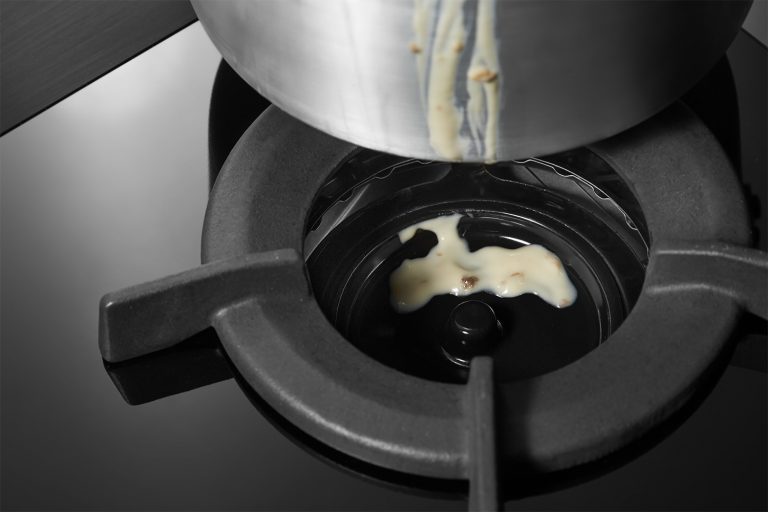

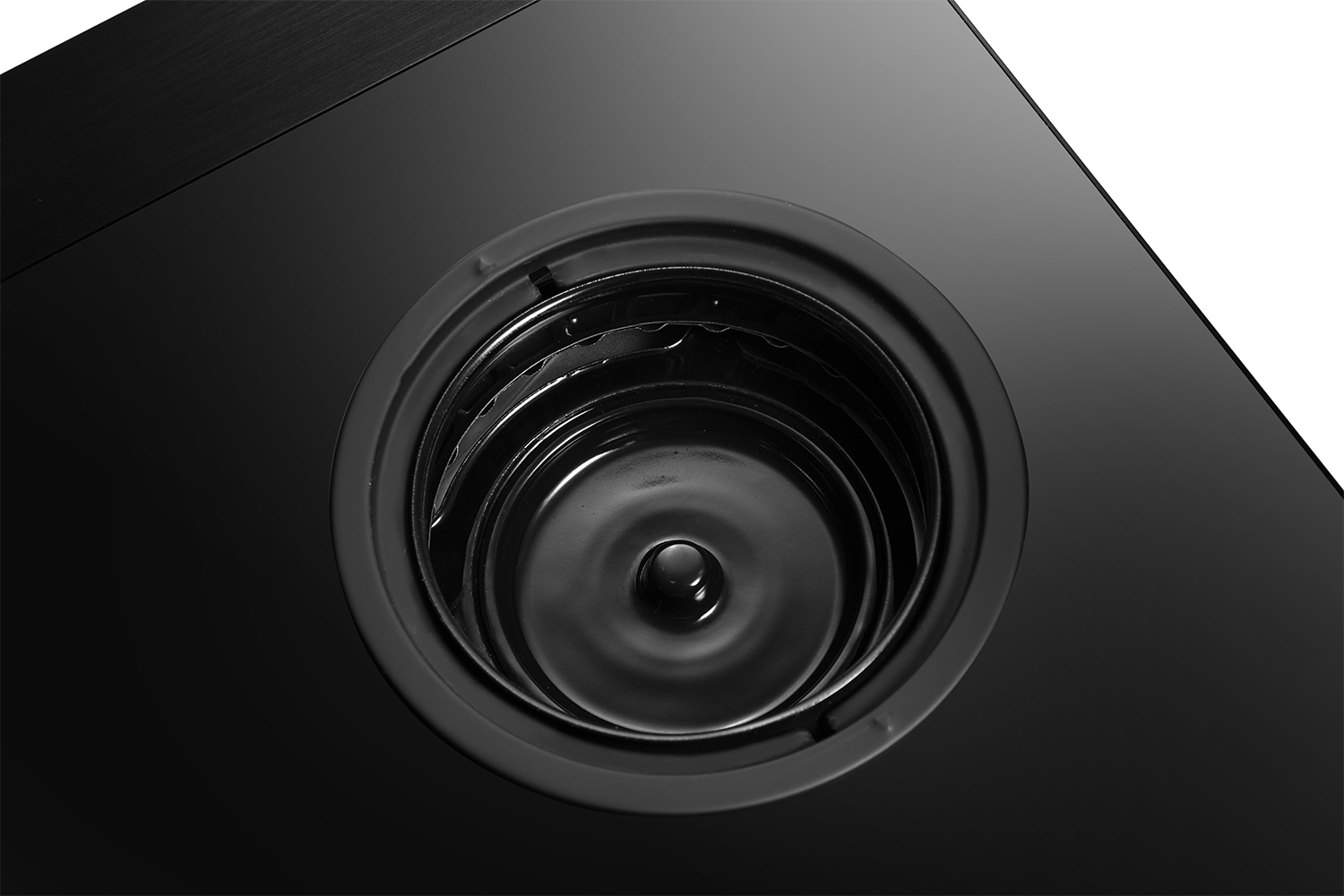

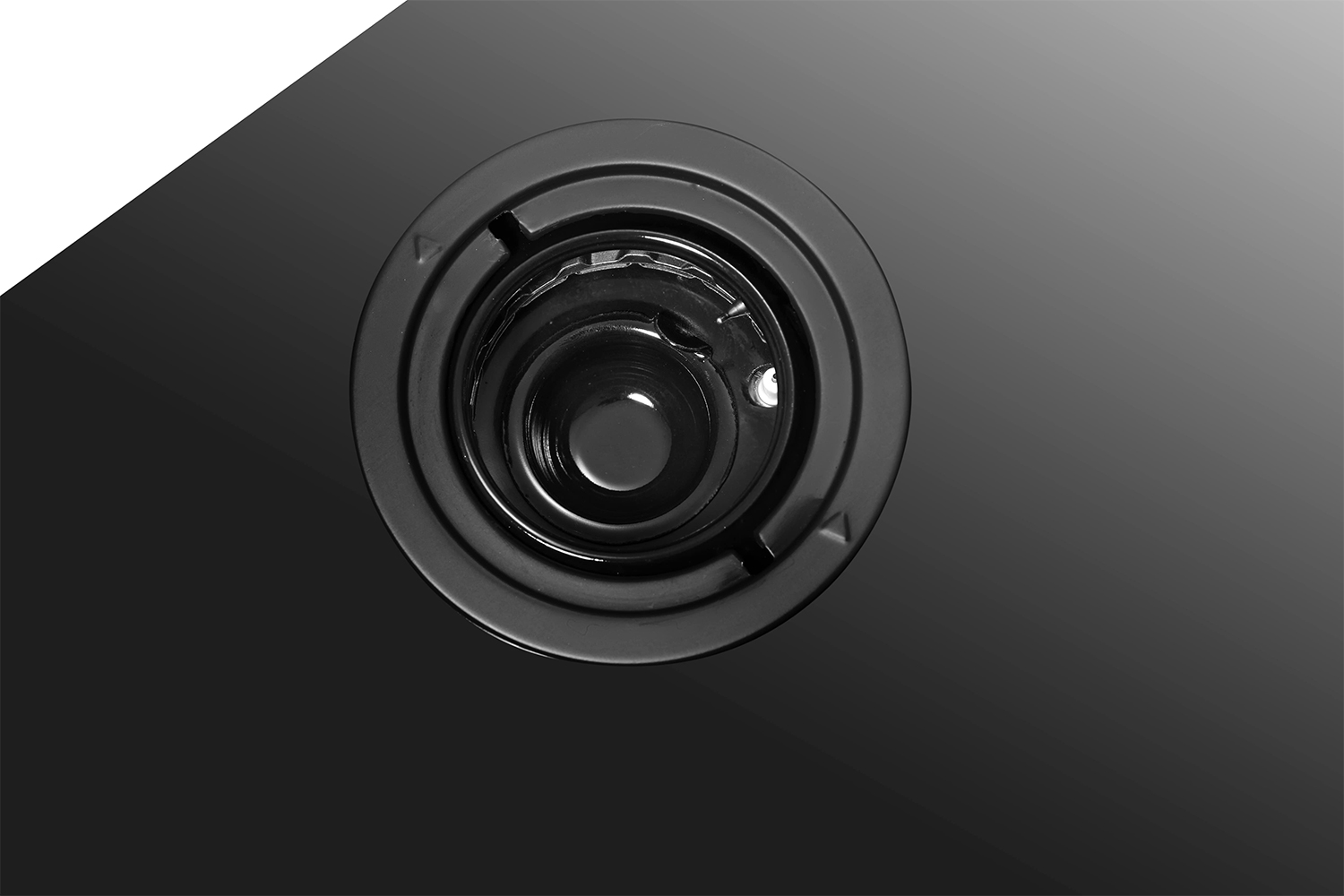

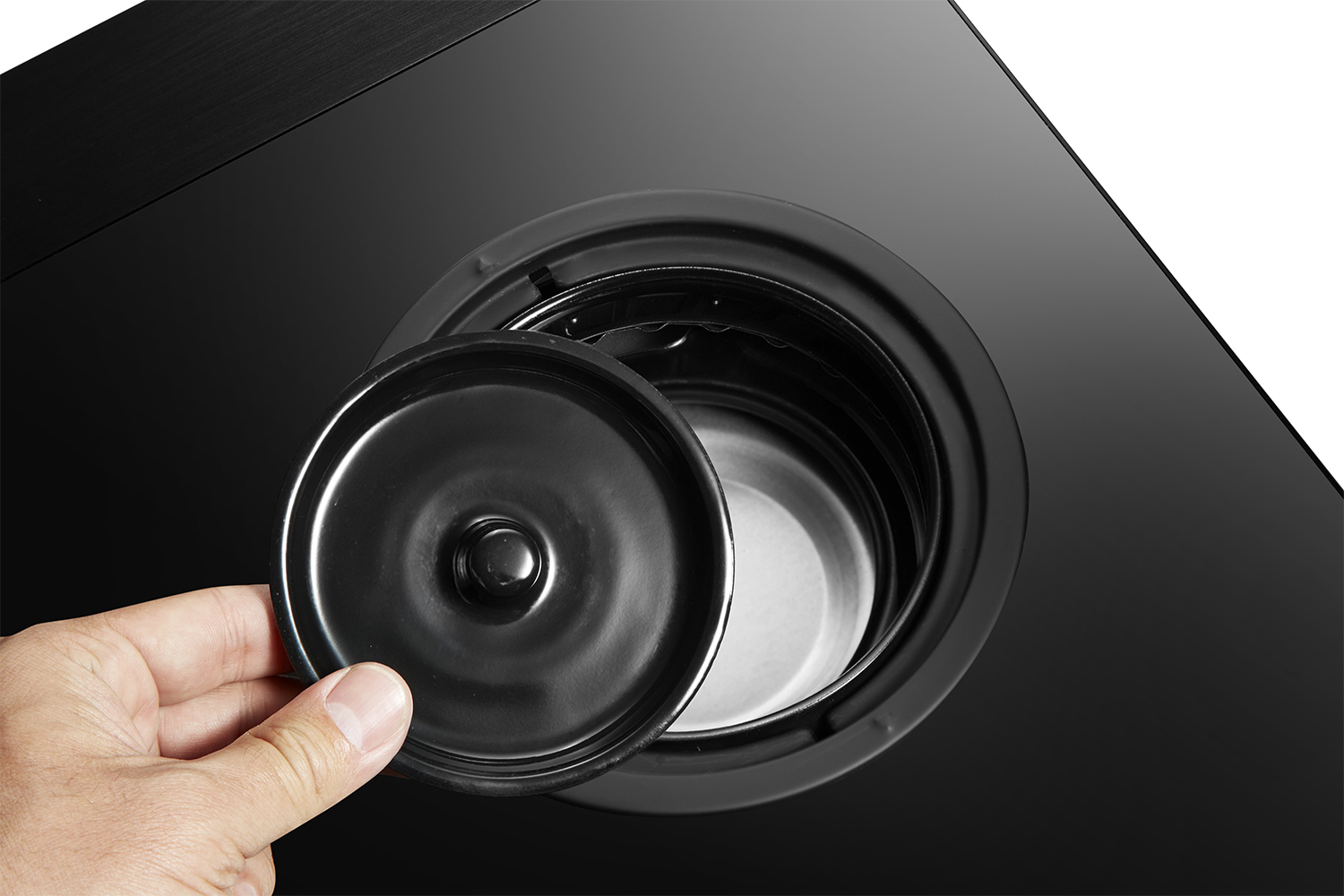

Inner Drip Pan
Overboiled soup will flow into the inner drip pan, which can be easily taken out for cleaning.

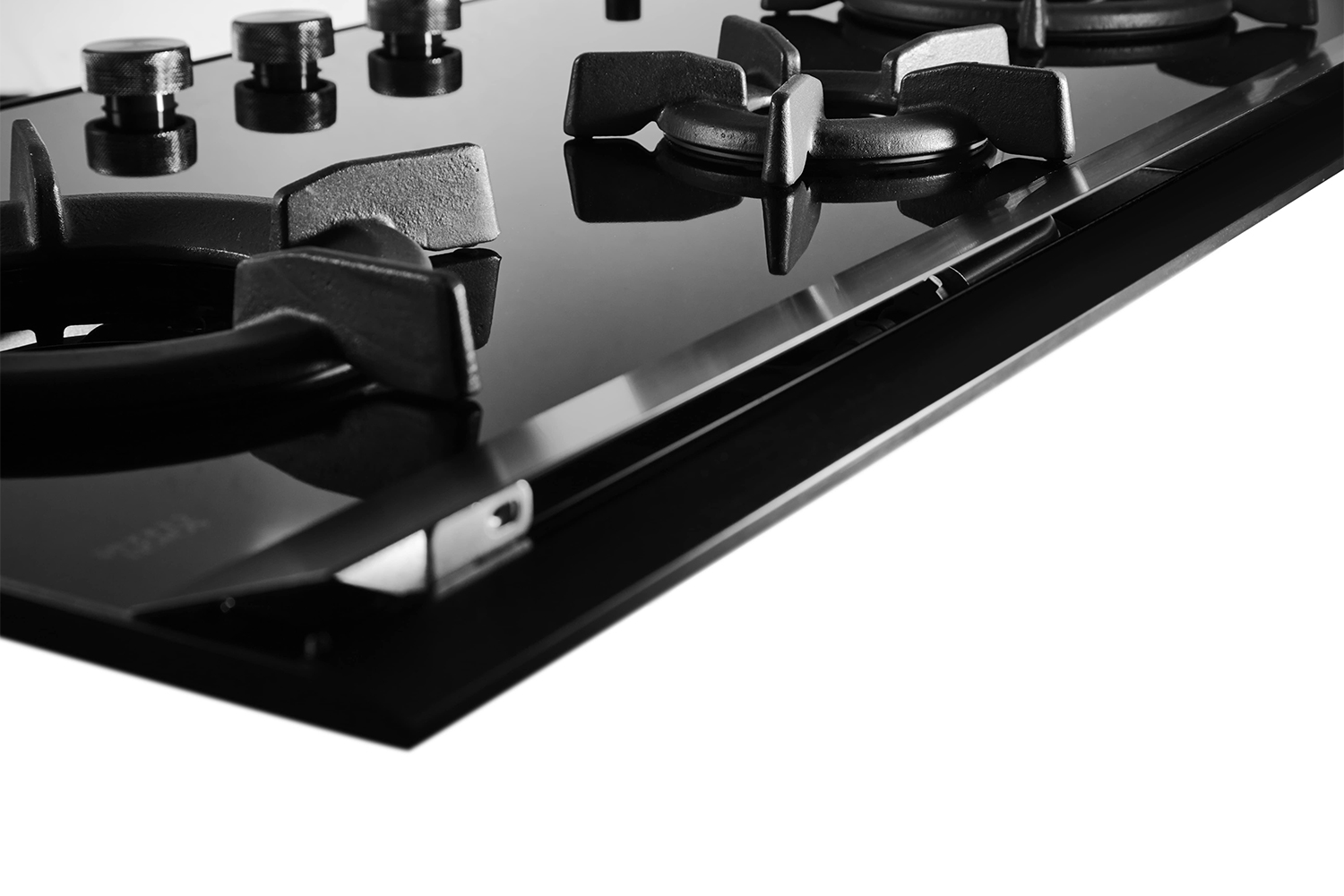

Aluminium Lourve
Oxygen can be drawn in rapidly for more efficient gas burning.

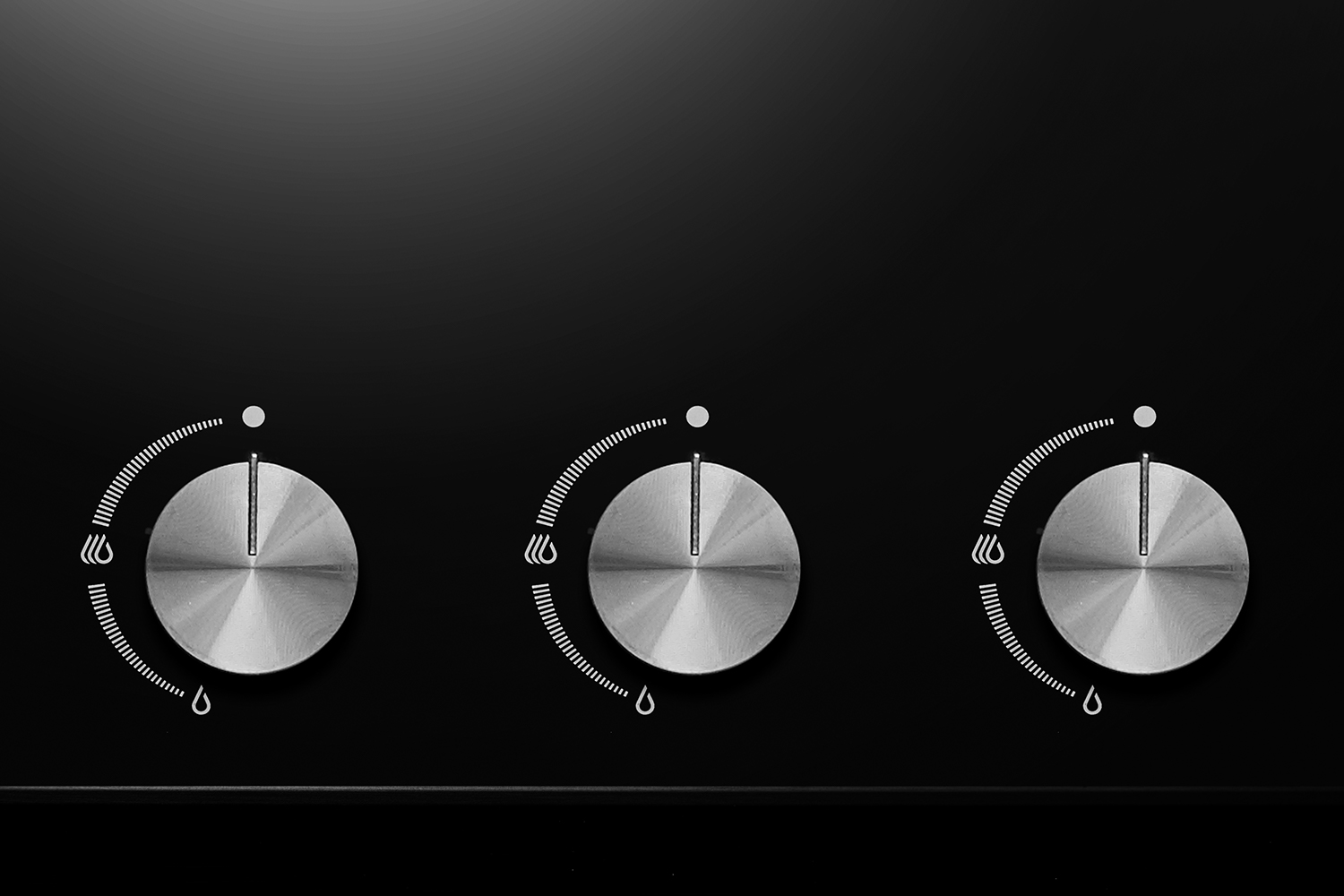

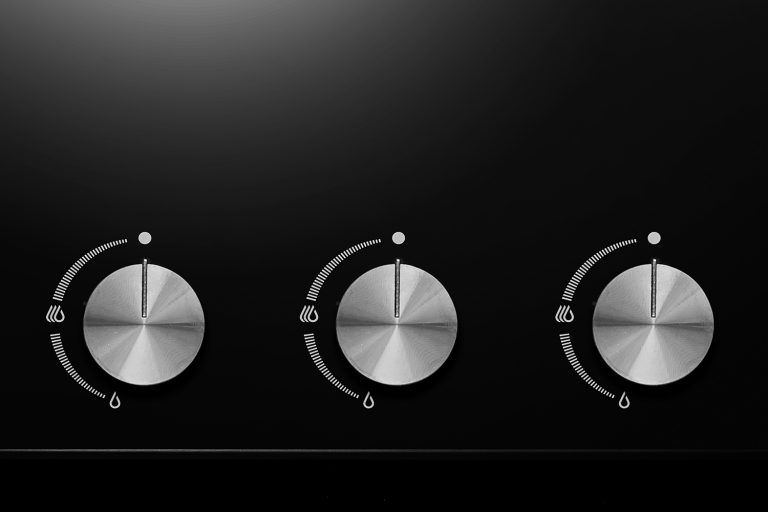

Versatile Flame Settings
Perfect flame control from simmer to powerful flame for greater cooking versatility, providing the ideal setting to cook your favourite Asian dishes.

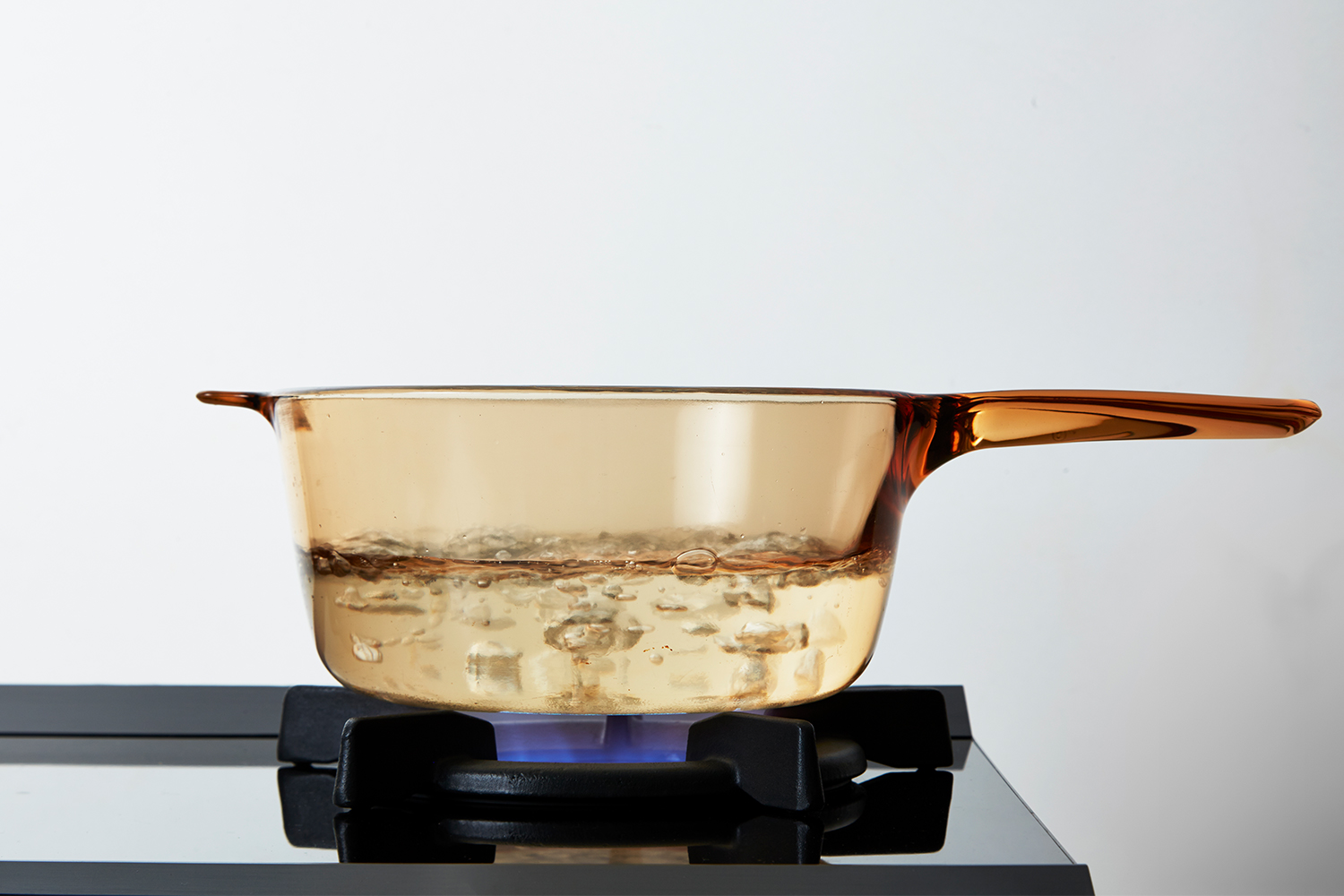

Delicate Simmer Flame
Flame can be adjusted low enough to simmer soups and stews.

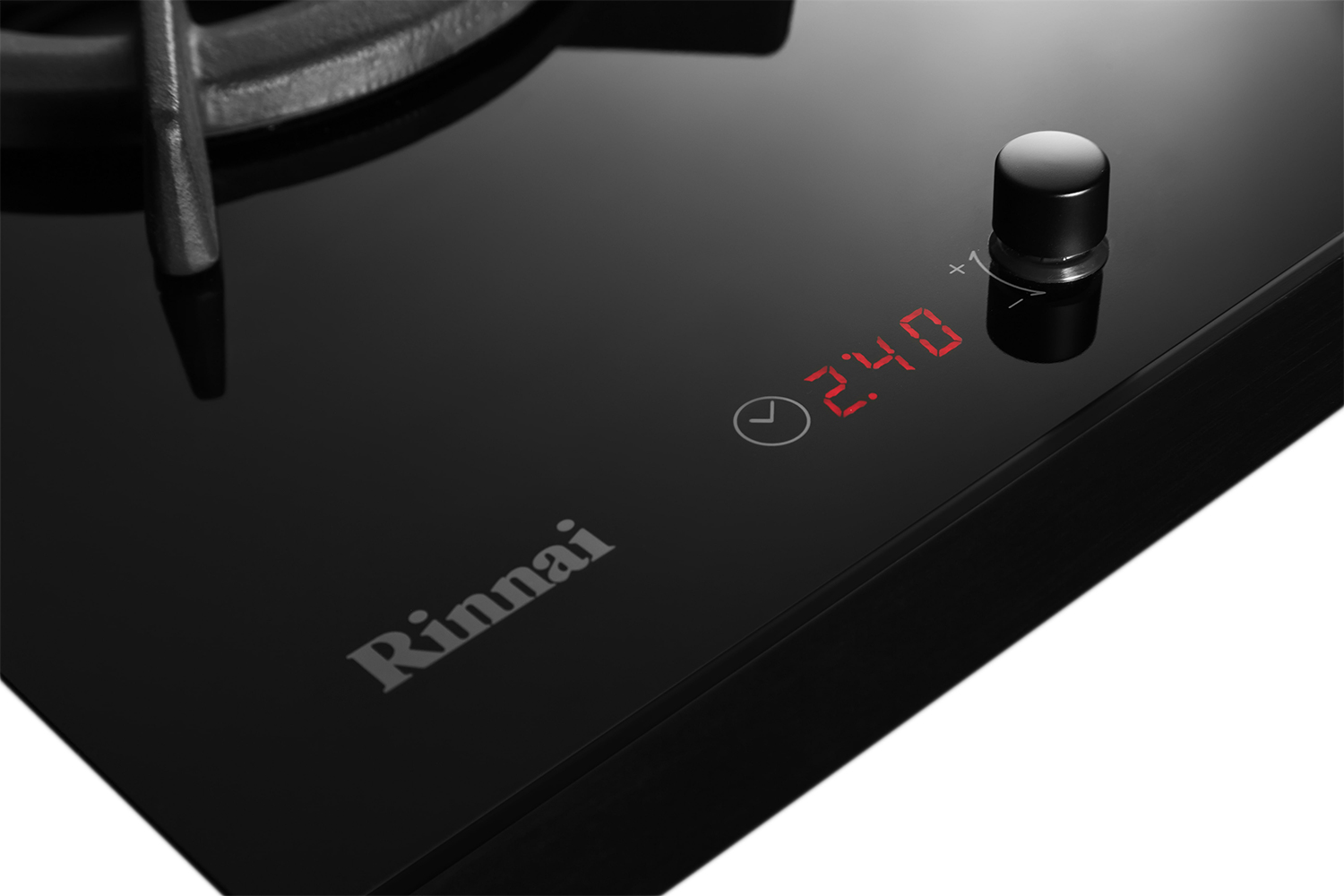

Timer (up to 4 hours)
Allows you to conveniently set cooking timer for more controlled cooking. Flame will auto-cut off when time is up.

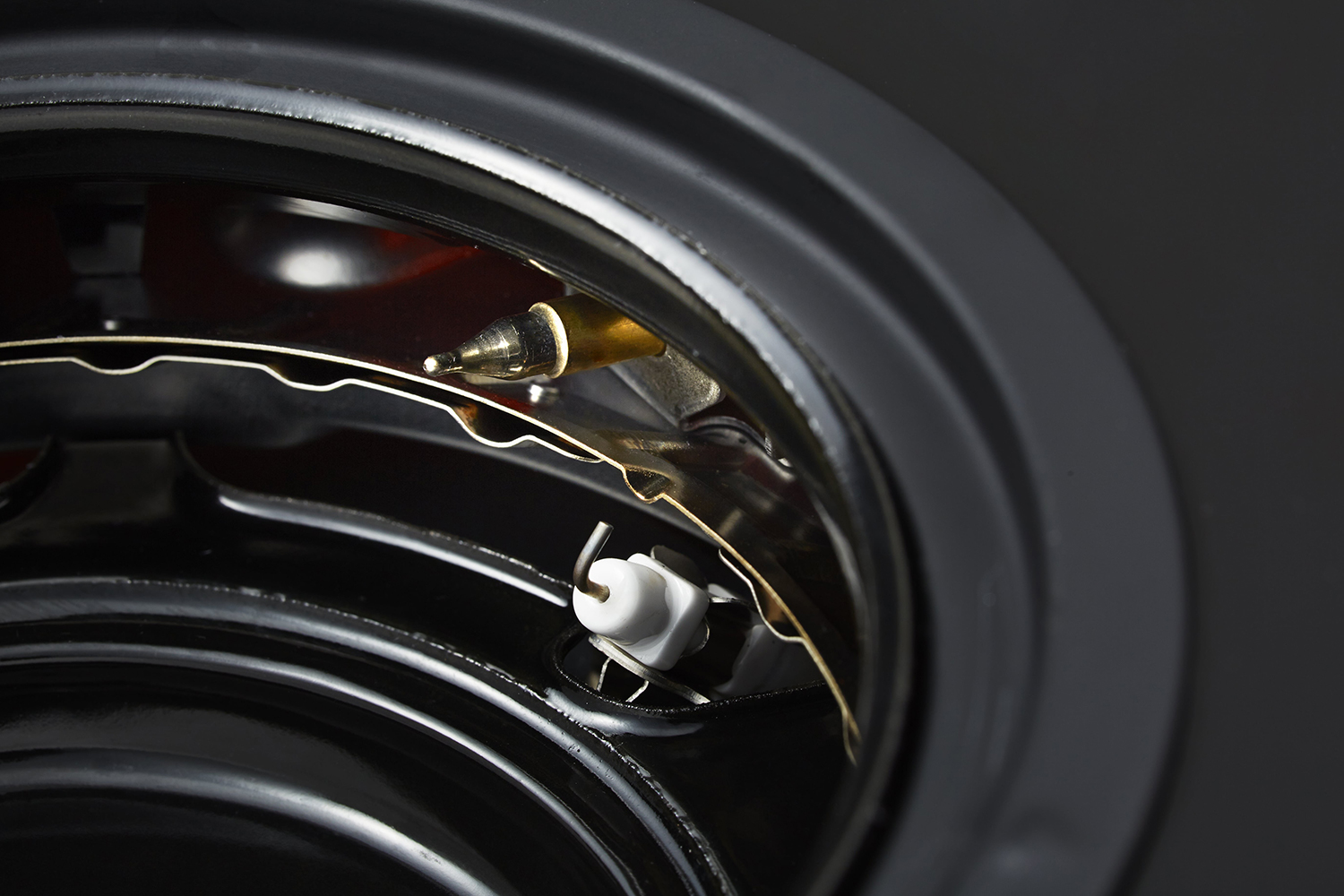

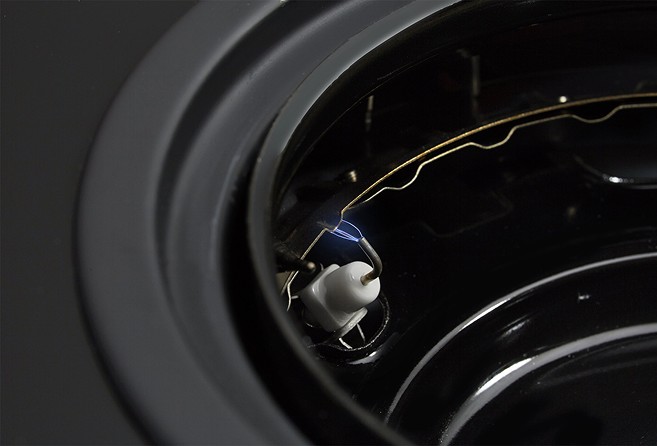

Safety Device
Cuts off the gas supply in the event of flame being extinguished.

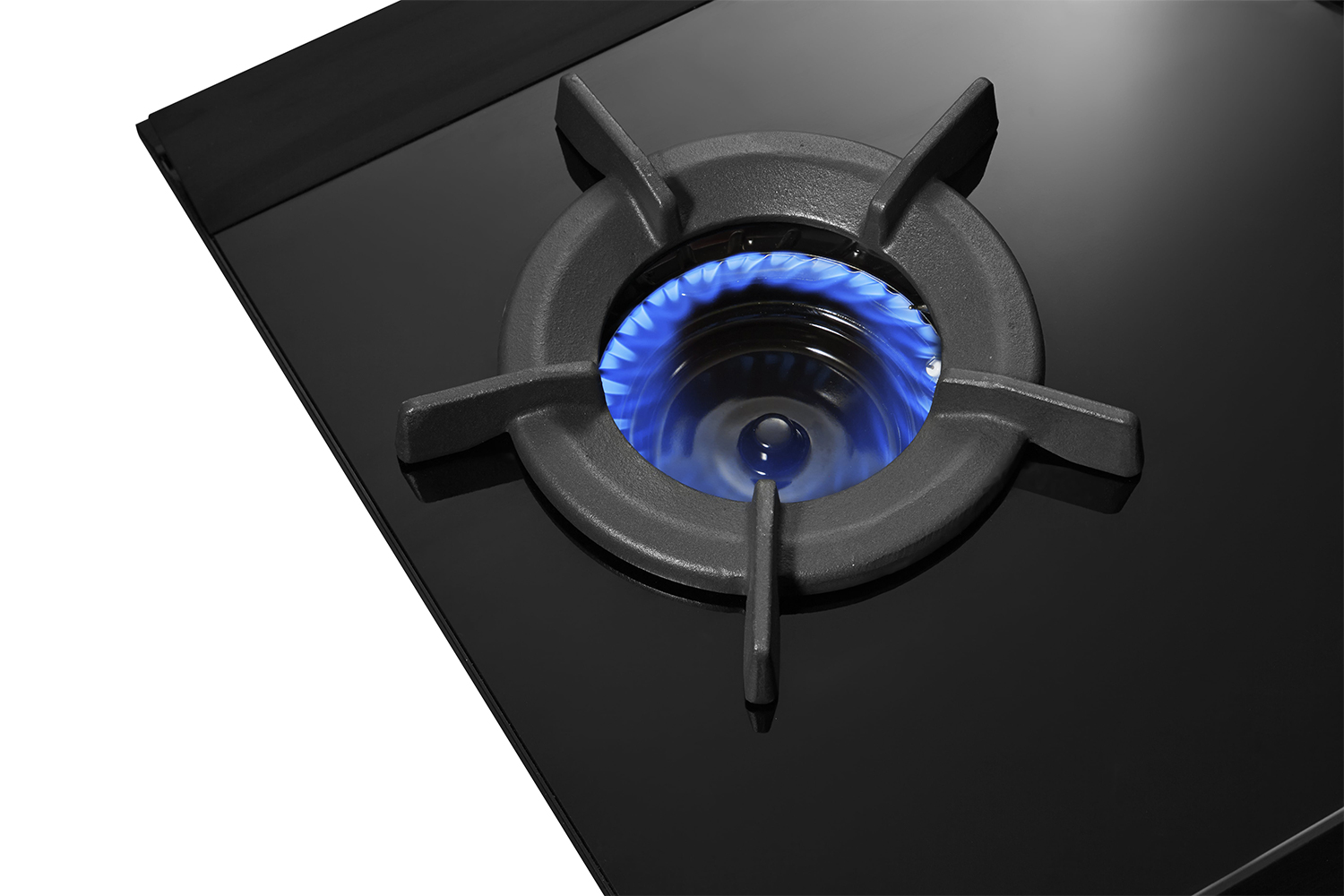

Protected from the Wind
You no longer have to worry about leaving the windows open when cooking - the Tornado Inner Flame is isolated and protected from surrounding winds.

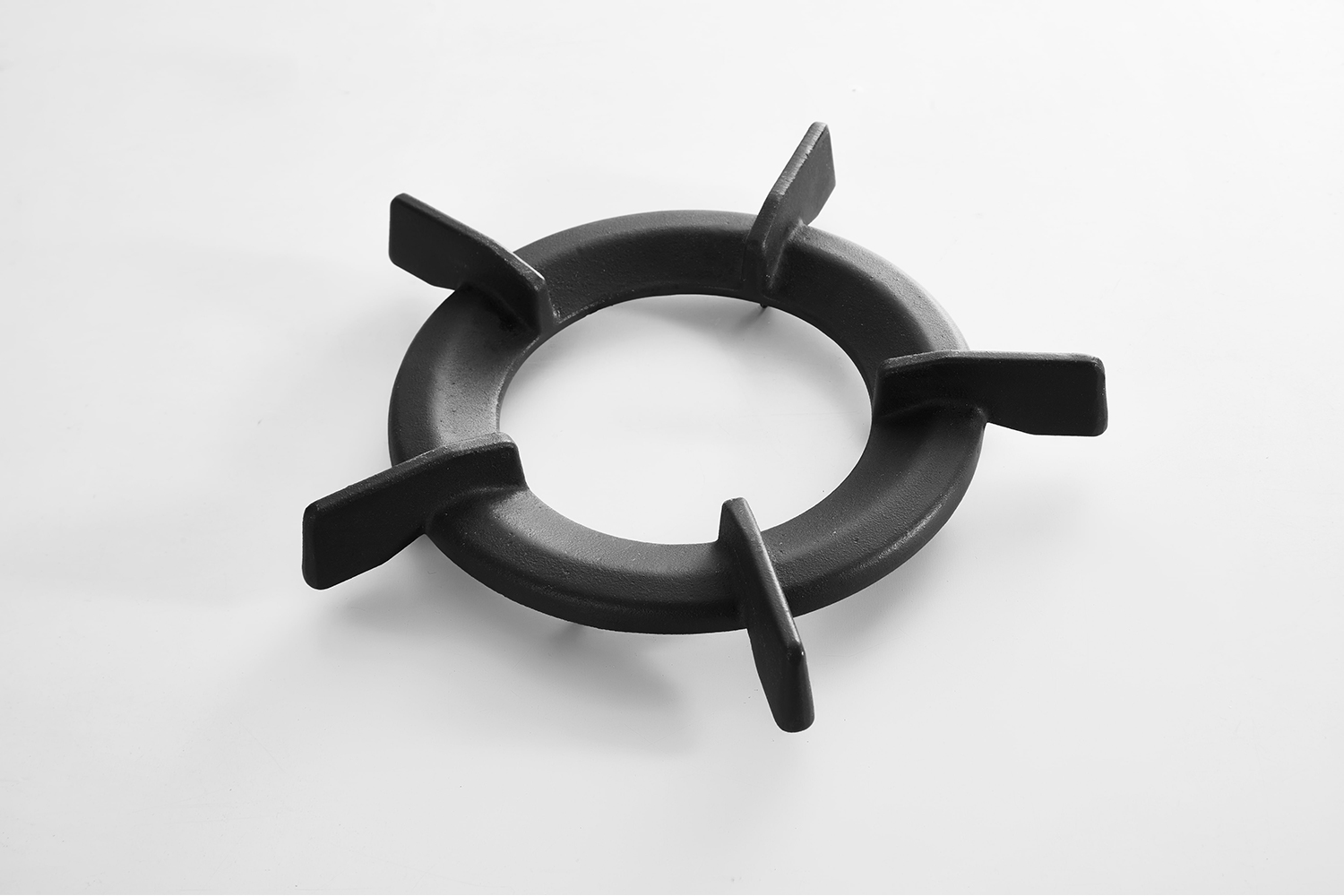

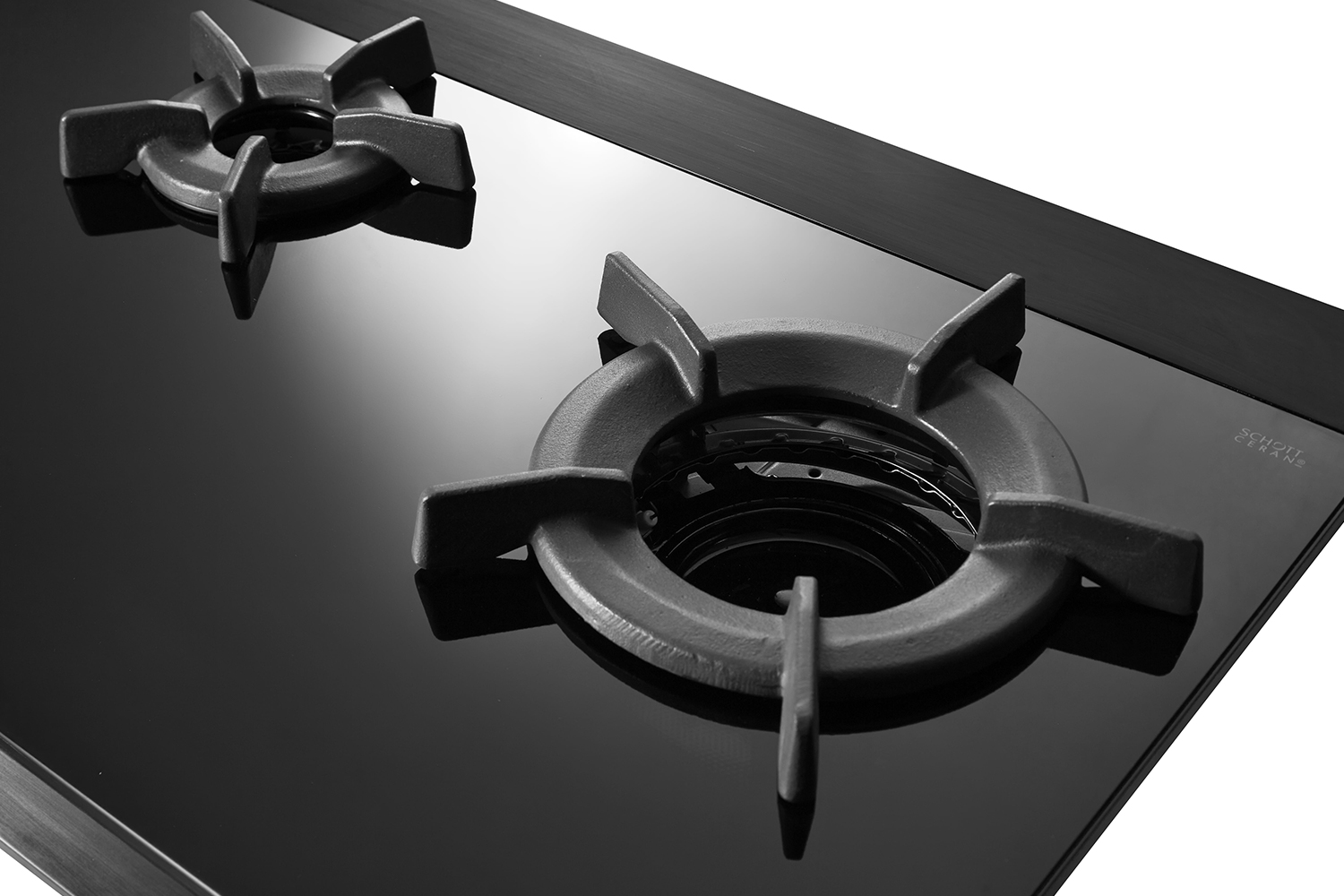

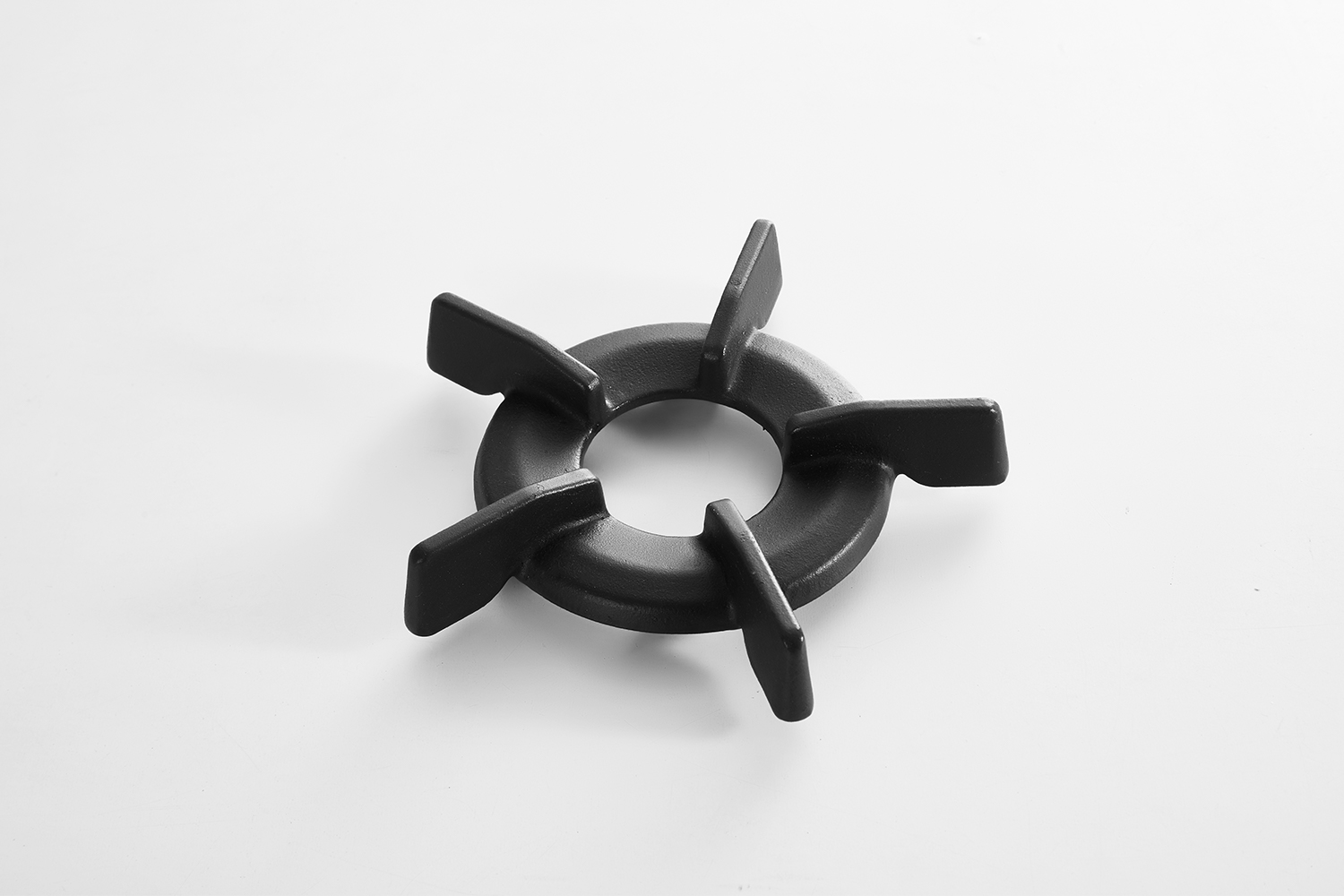

Cast Iron Pan Support
Cast Iron pan support is solid and never deforms in shape, it ensures stability of your wok and pan.

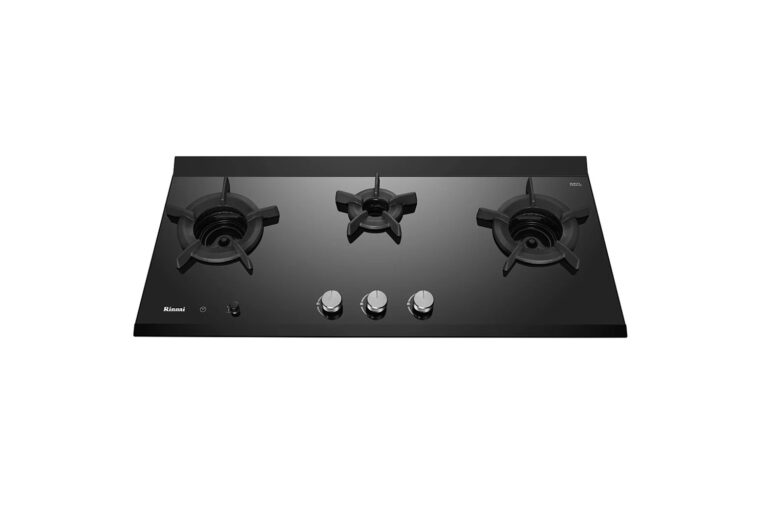

Series
Inner Flame Series
Gas Input (LPG)
L/R: 3.6kW; C: 1.5kW
Gas Type
LPG

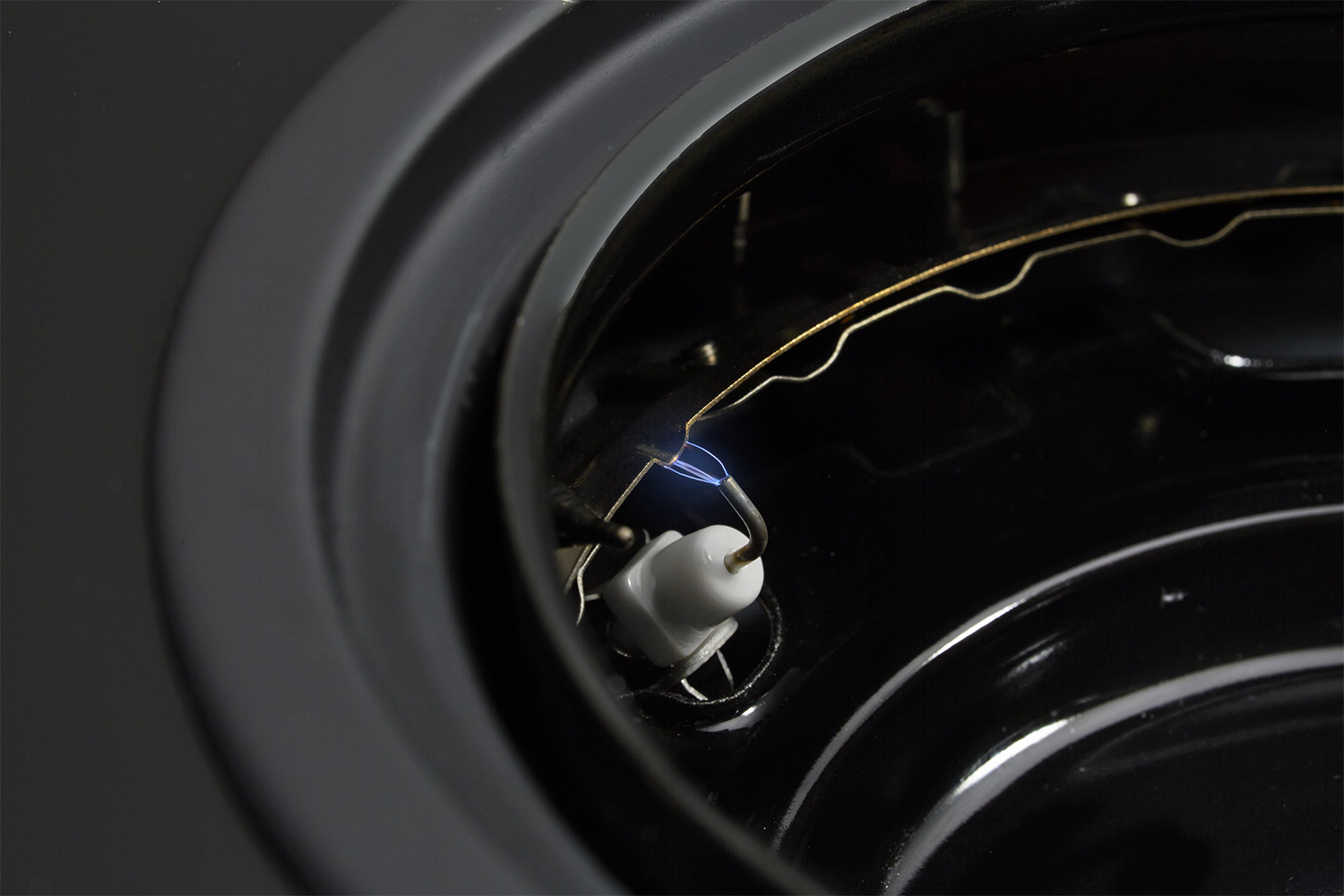

Power Supply
Battery ignition

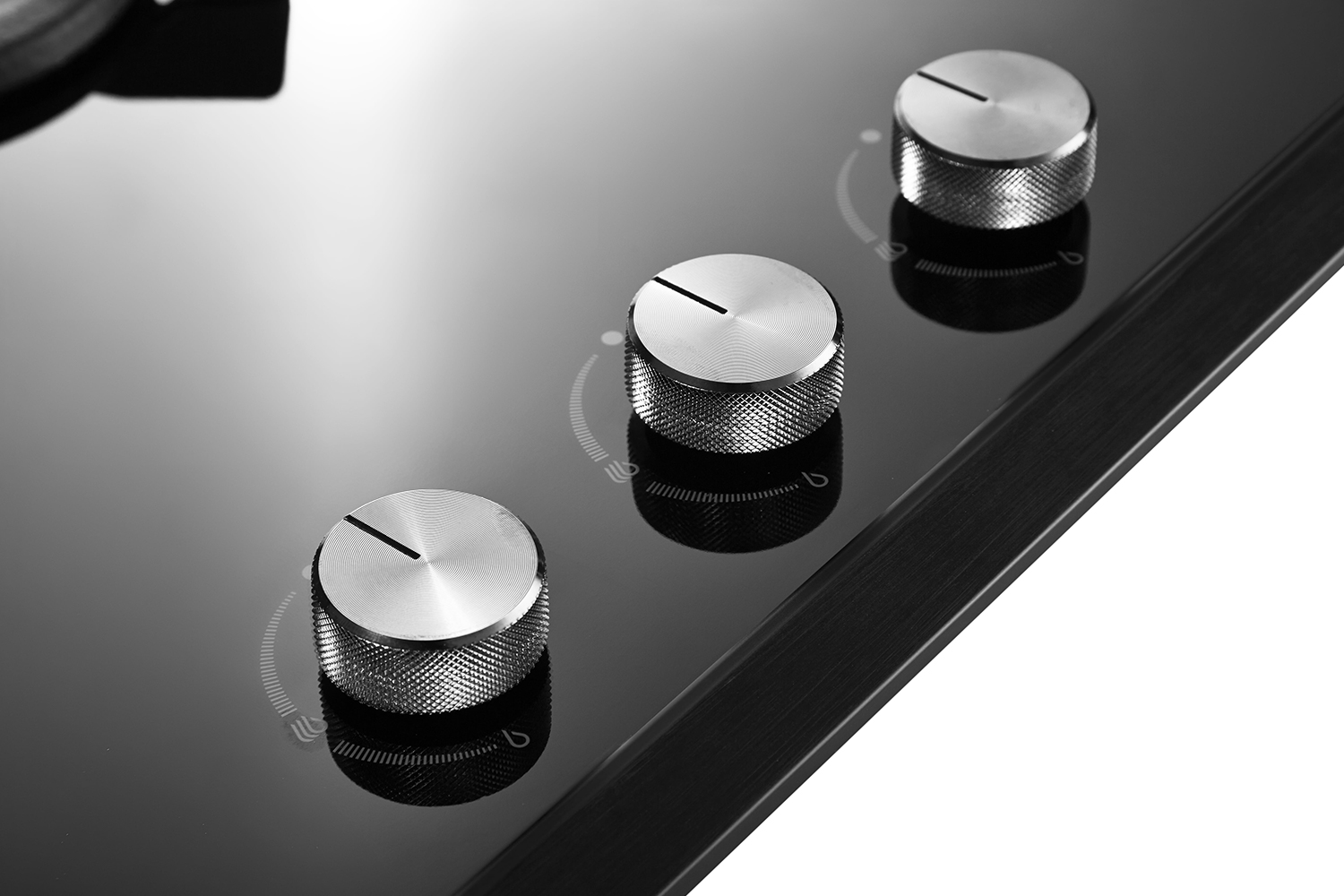

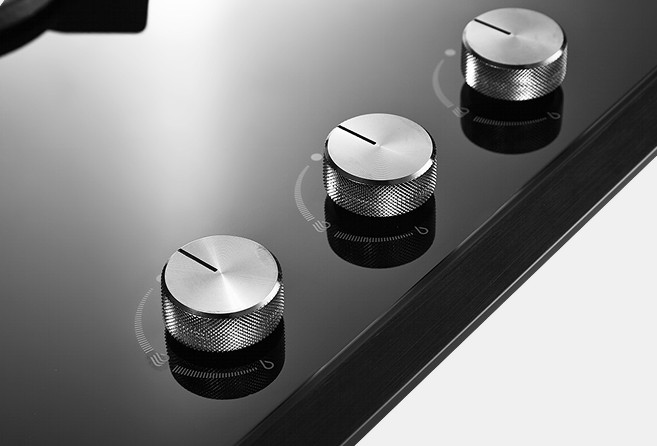

Control Panel
Knobs
Safety Device
Yes
Pan Support
Cast Iron
Flexible Cut-Out
No
Width (cm)
86
Product Size (W x D x H) (cm)
85.3 x 43.4 x 6.6
Cut-Out Size (W x D) (cm)
81.5 x 40.5
Burner
Inner Burner
No. Burner
3
Timer
Yes (Left Burner) 240 mins
Surface
Schott Ceran Glass
Technical Diagram
