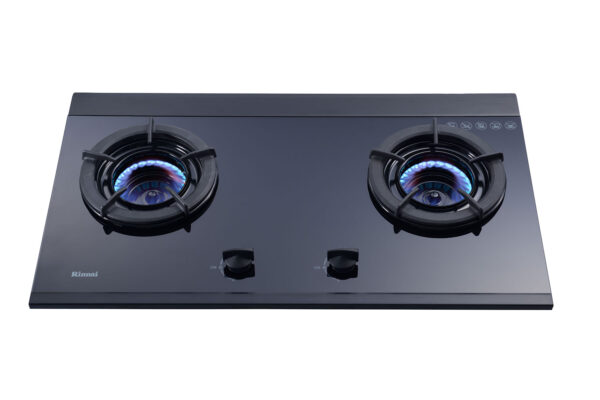

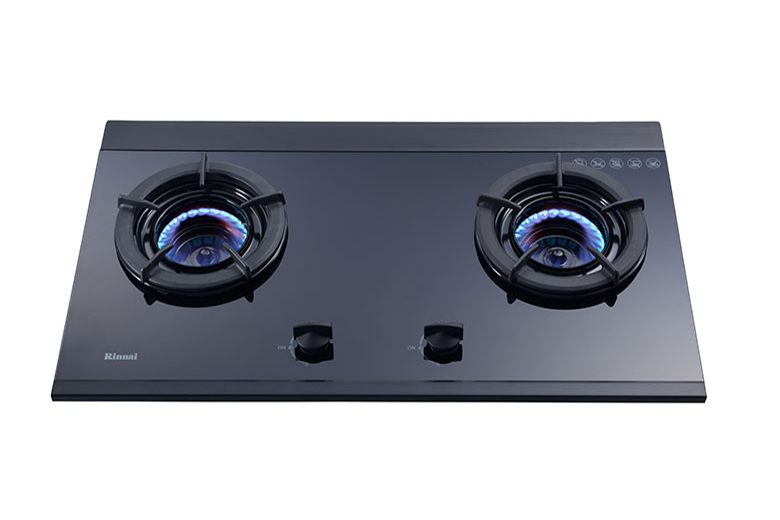

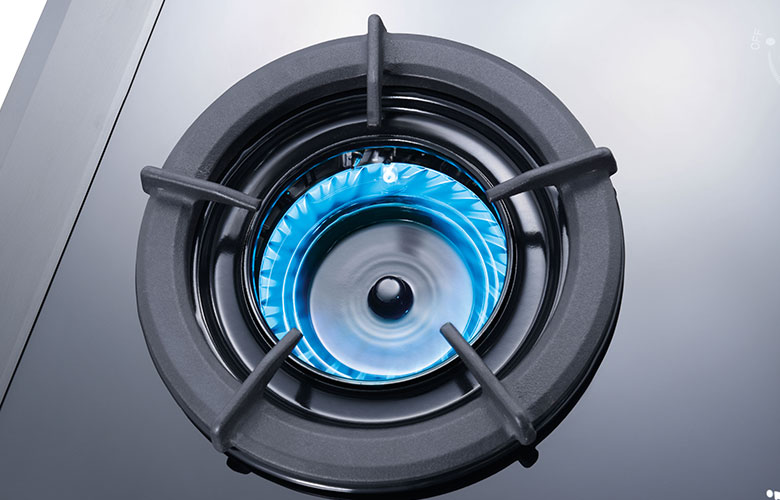

Inner Flame

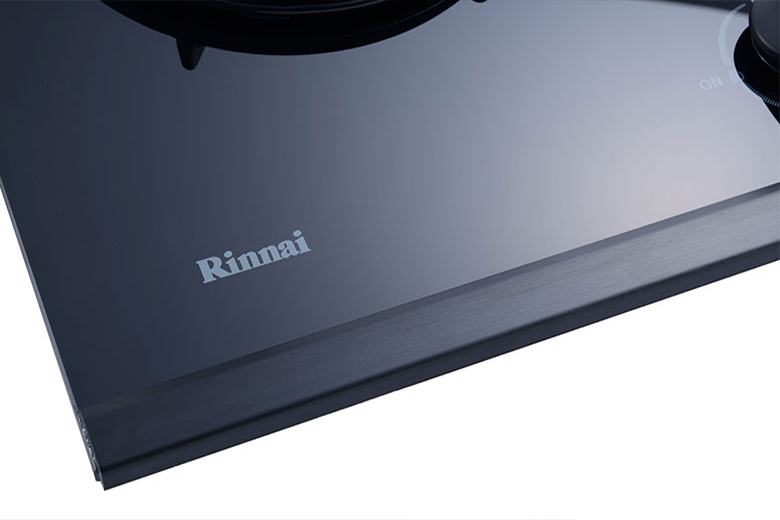

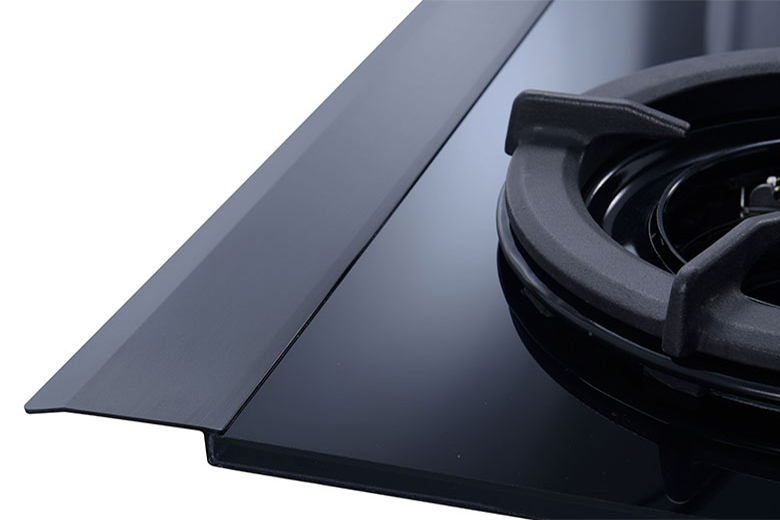

Tempered Glass Top

Safety Device

Cast Iron

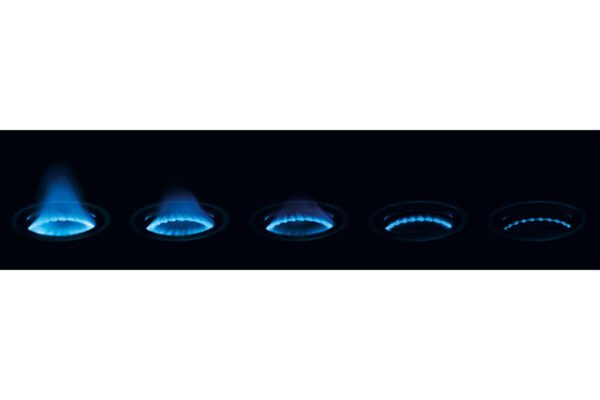

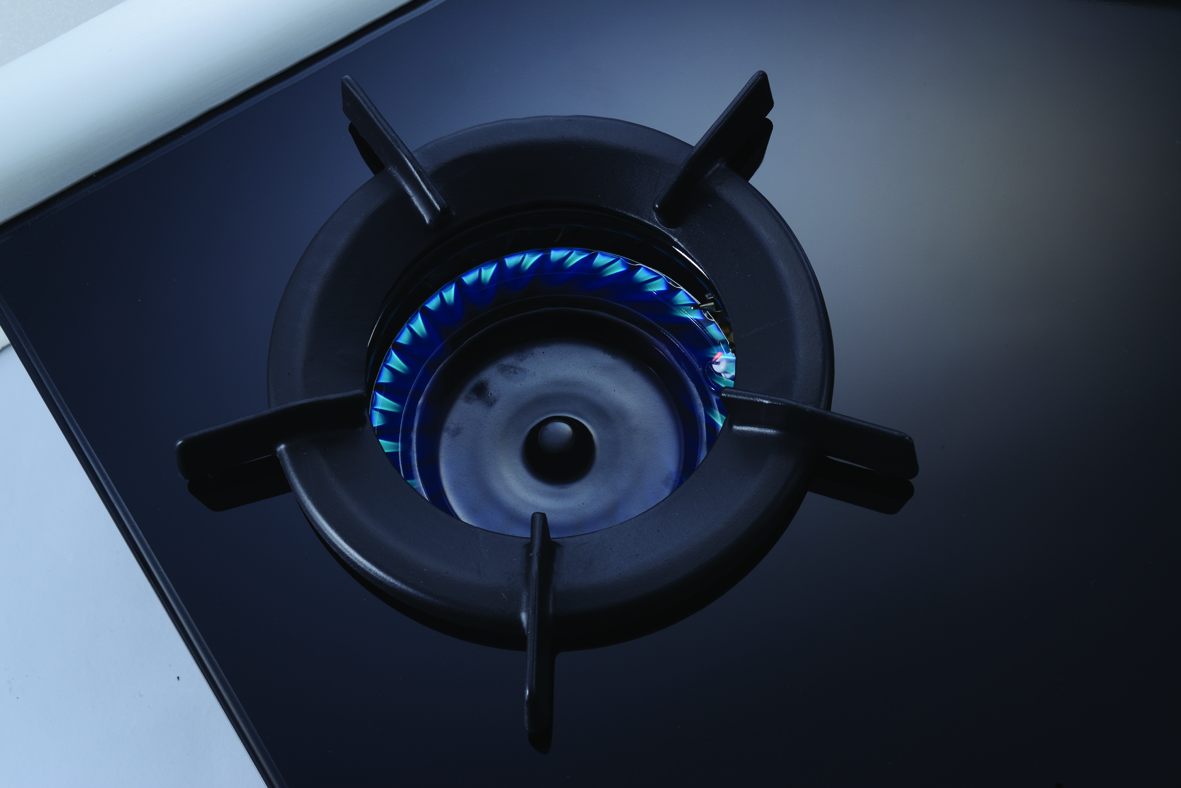

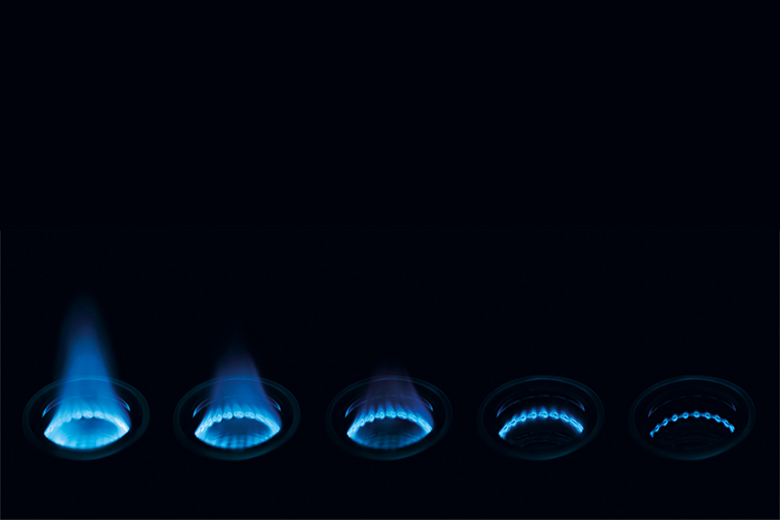

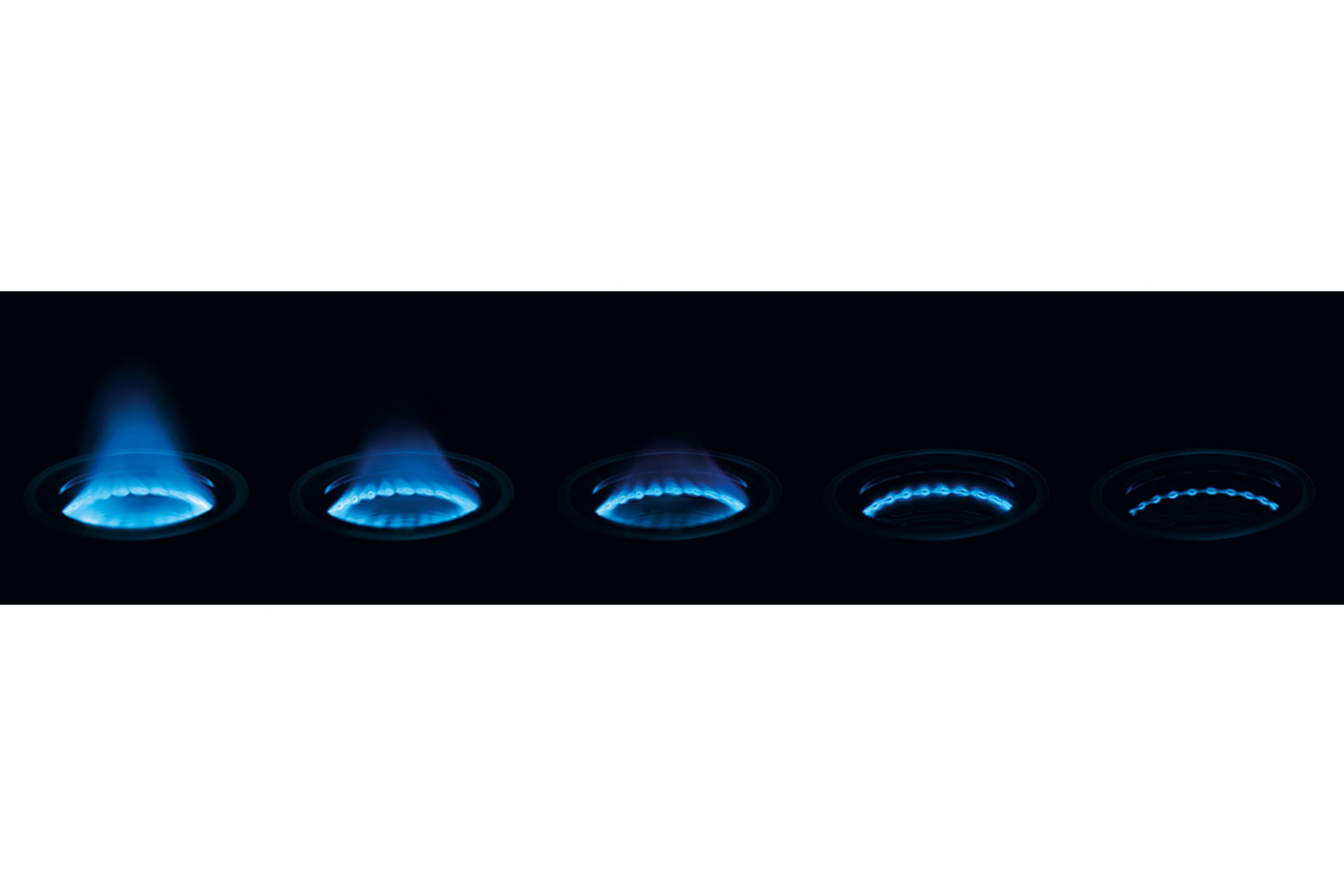

Versatile Flame Settings With Simmer

Perfect flame control, with powerful, controllable and even heating, providing the ideal setting to cook your favourite Asian dishes.

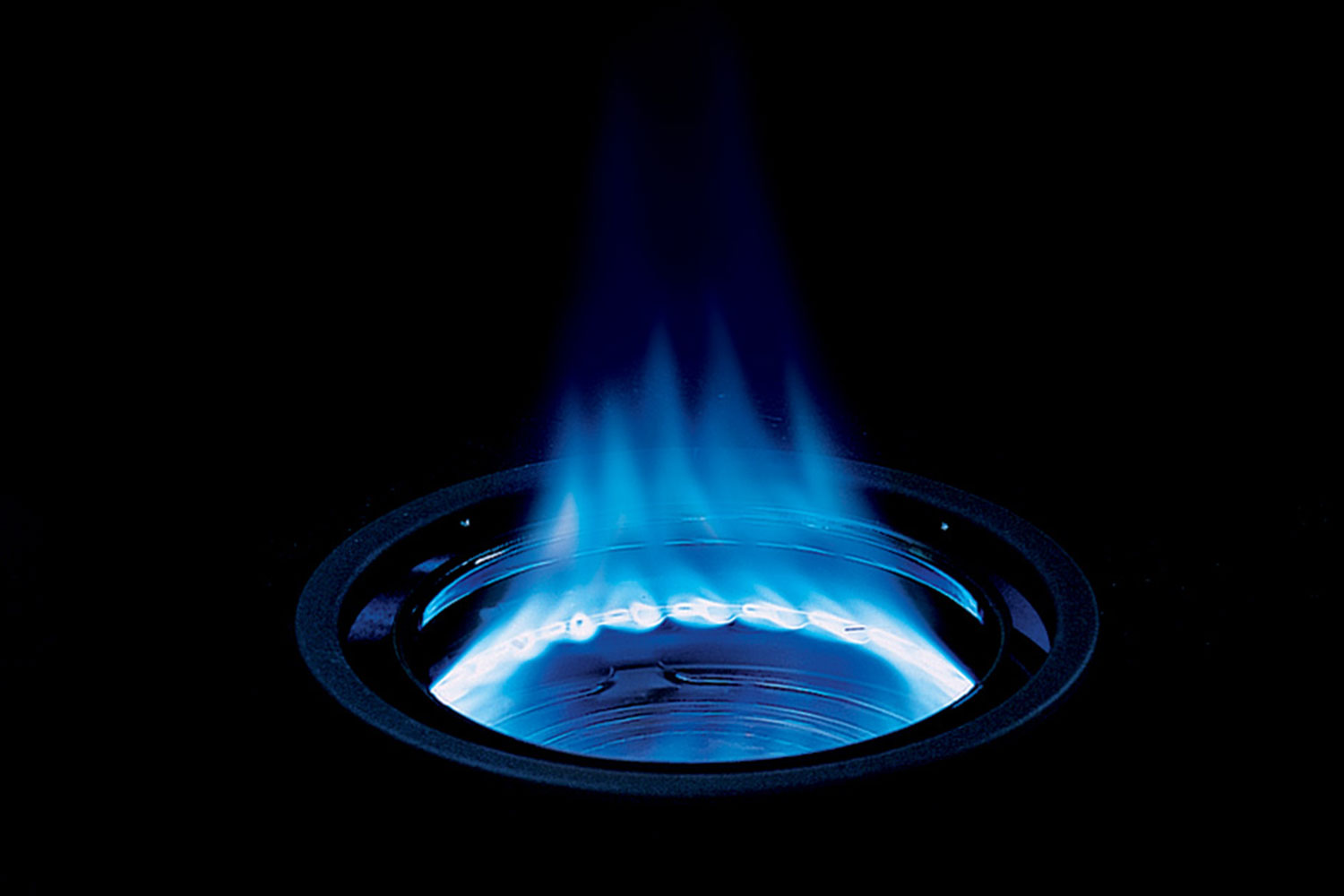

Rinnai’s Original Combustion Technology

Armed with 52% heat efficiency, the Inner Flame burner cooks faster and uses less gas than conventional gas hobs with 40% heat efficiency.

Save Gas and Cooking Time

The Inner Flame burner helps reduce energy – it heats the cookware from the middle – resulting in less heat lost.

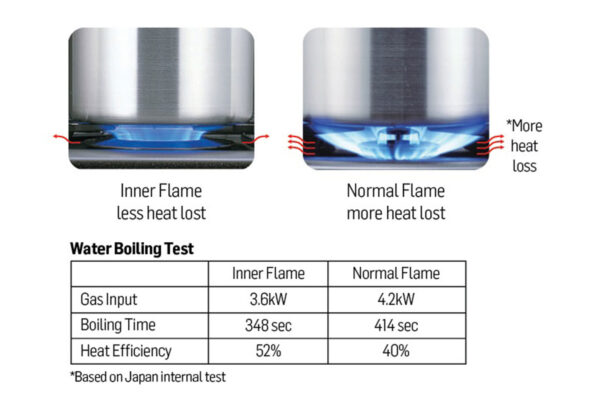

Inner Flame vs Normal Flamer

Less heat lost vs more heat lost

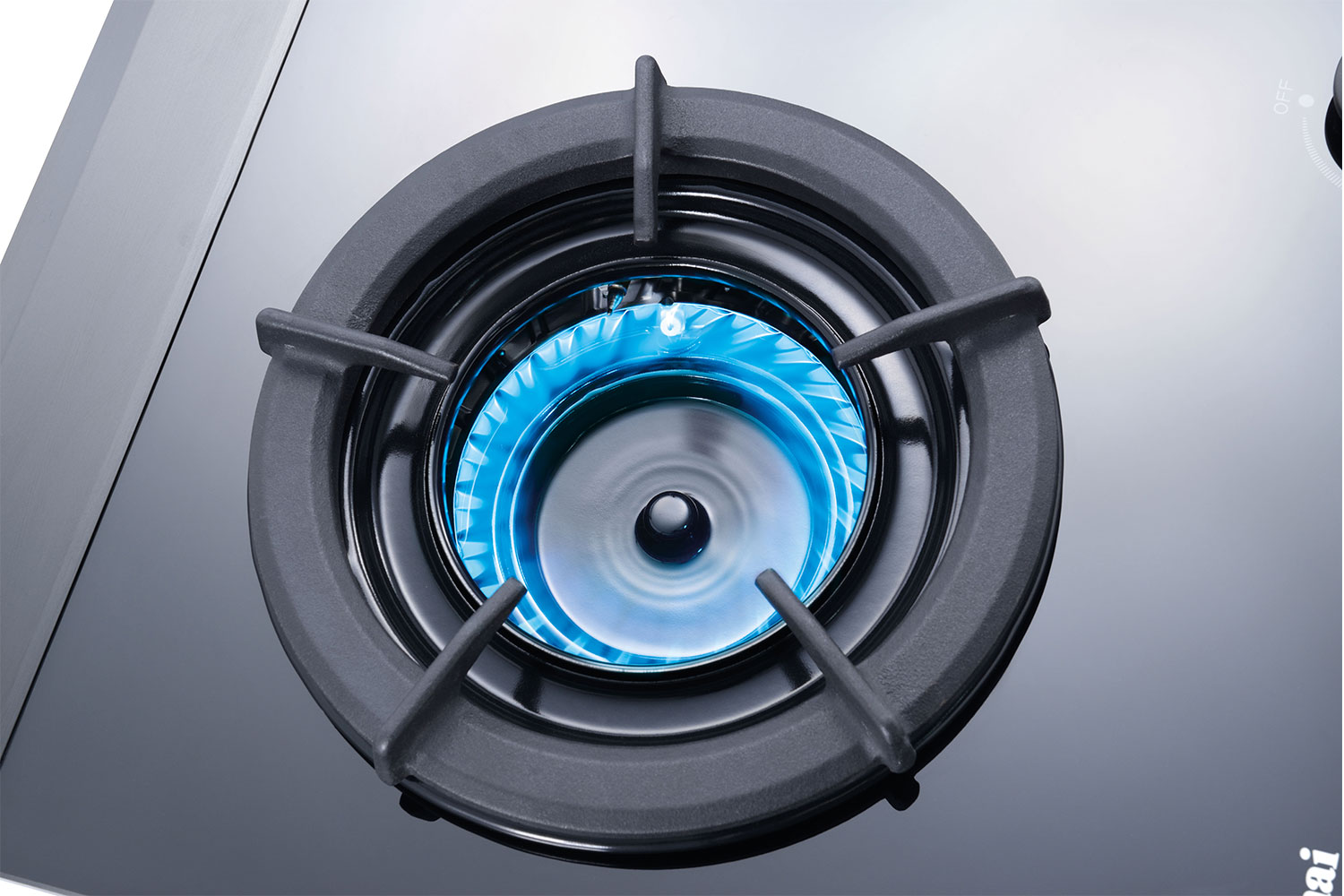

Protection From The Wind

You no longer have to worry about leaving the windows open when cooking – the Tornado inner flame is isolated and protected from surrouding winds

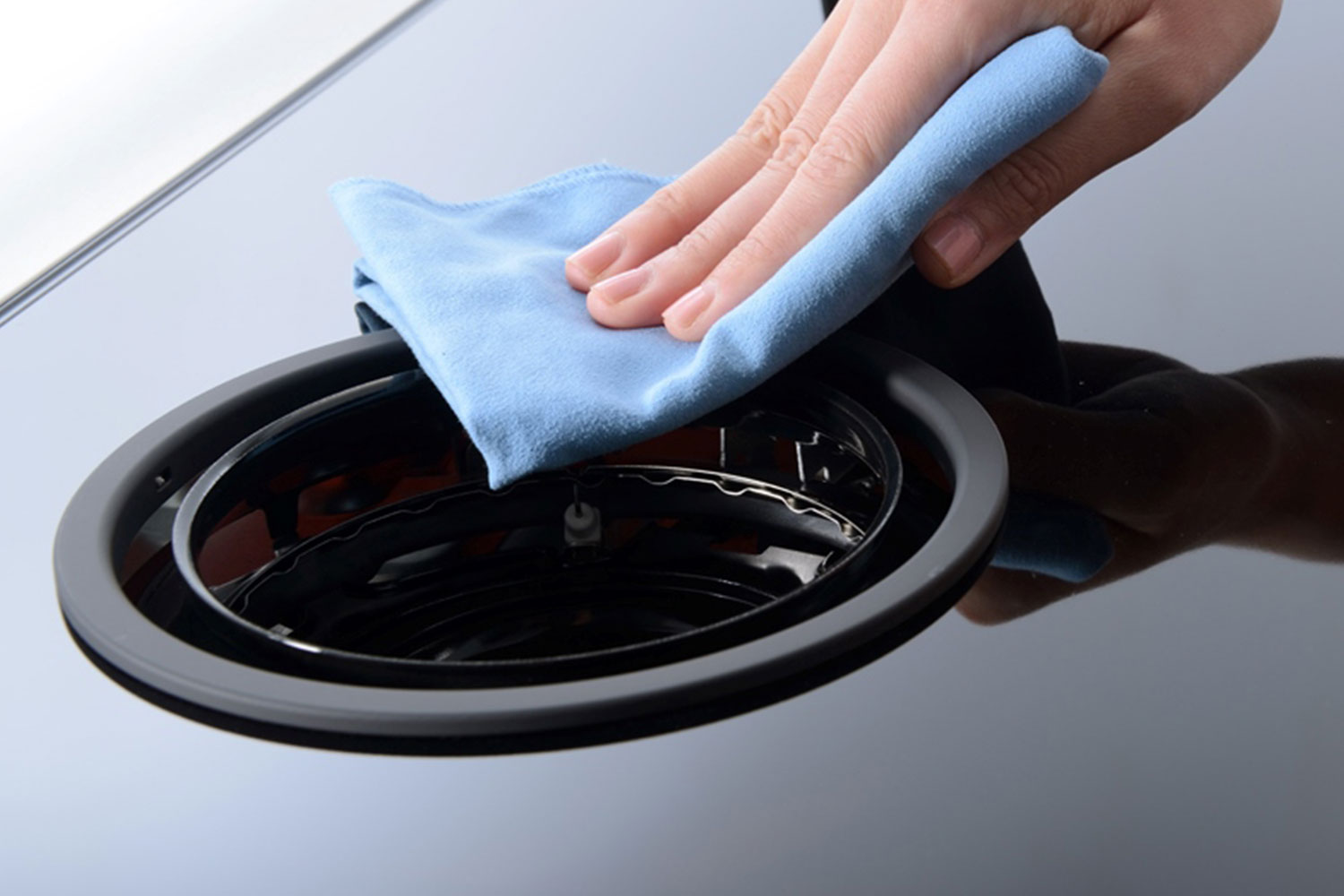

Easy To Clean

Cleaning and maintenance are minimal because there are no burner head and burner ring to wash.

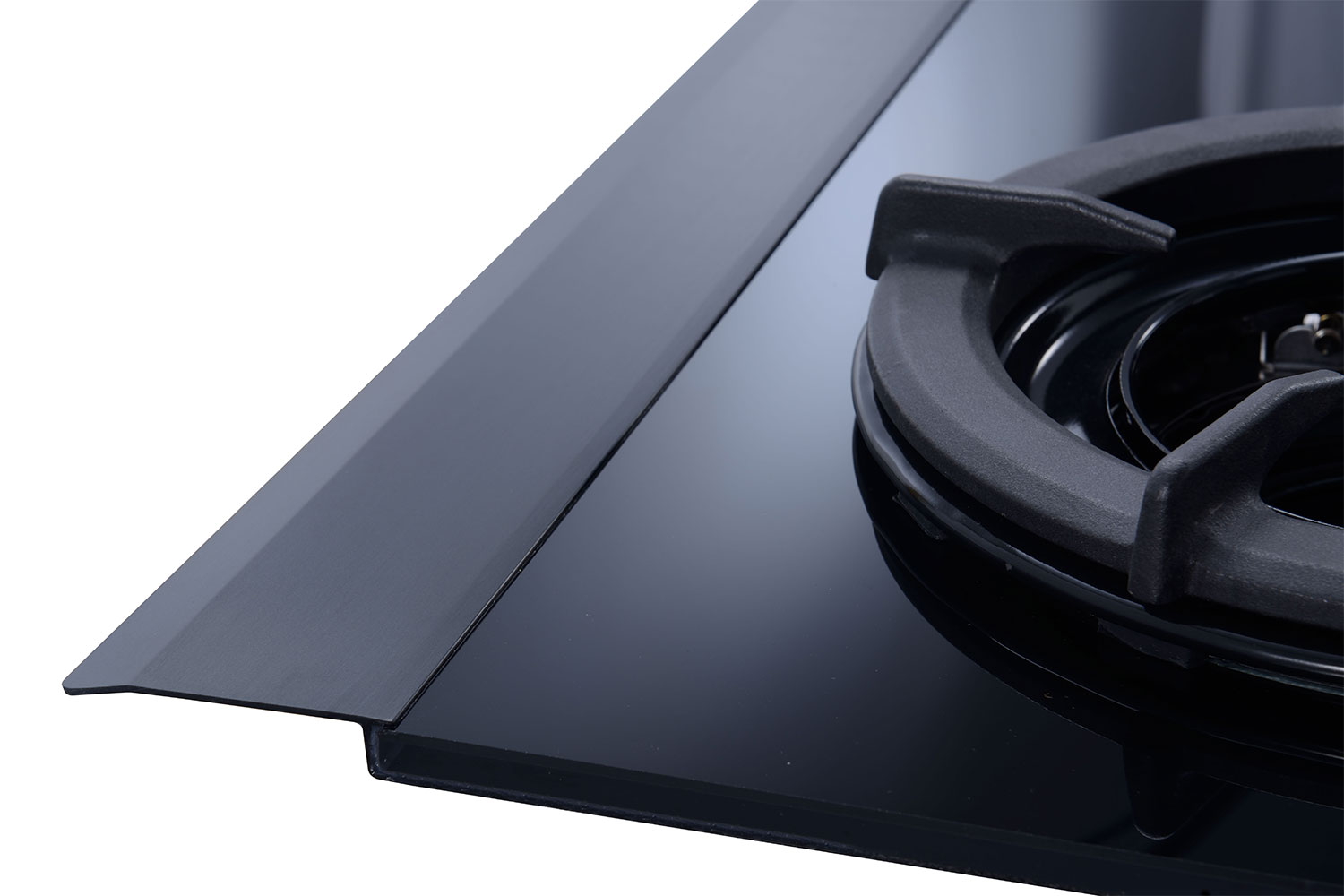

Air Intake Guard

Oxygen can be drawn in rapidly for more efficient gas burning.

Cast Iron Pan Support

More solid and durable, eliminating the need for an wok adapter to place a wok or pan on the burner.

Inner Drip Pan

Overboiled soup will flow into the inner drip pan, which can be easily taken out for cleaning.

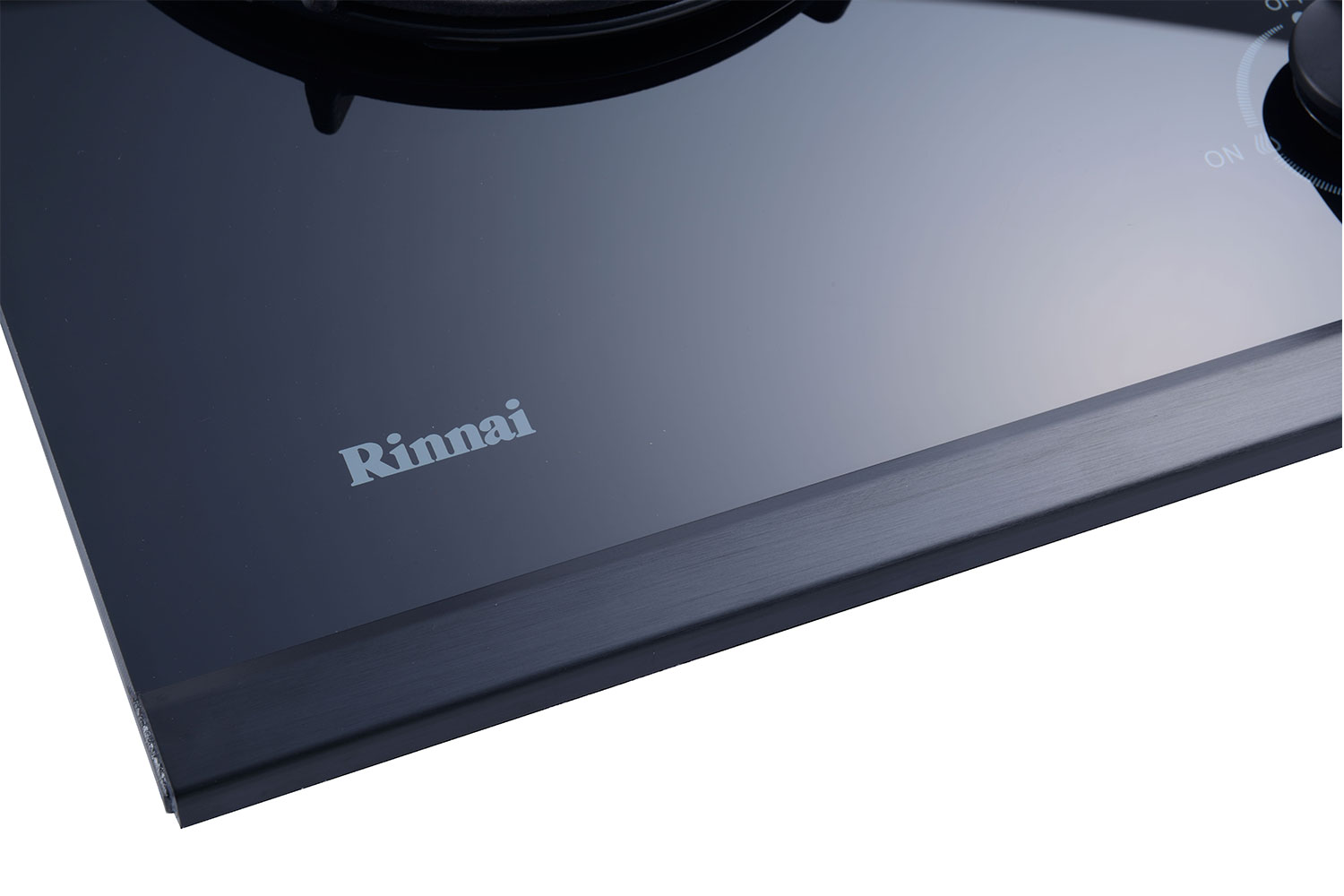

Surface Tempered Glass
No. of Burner 2
Gas Input
L/R: 3.5kW
Gas Type LPG
Power Supply Battery ignition

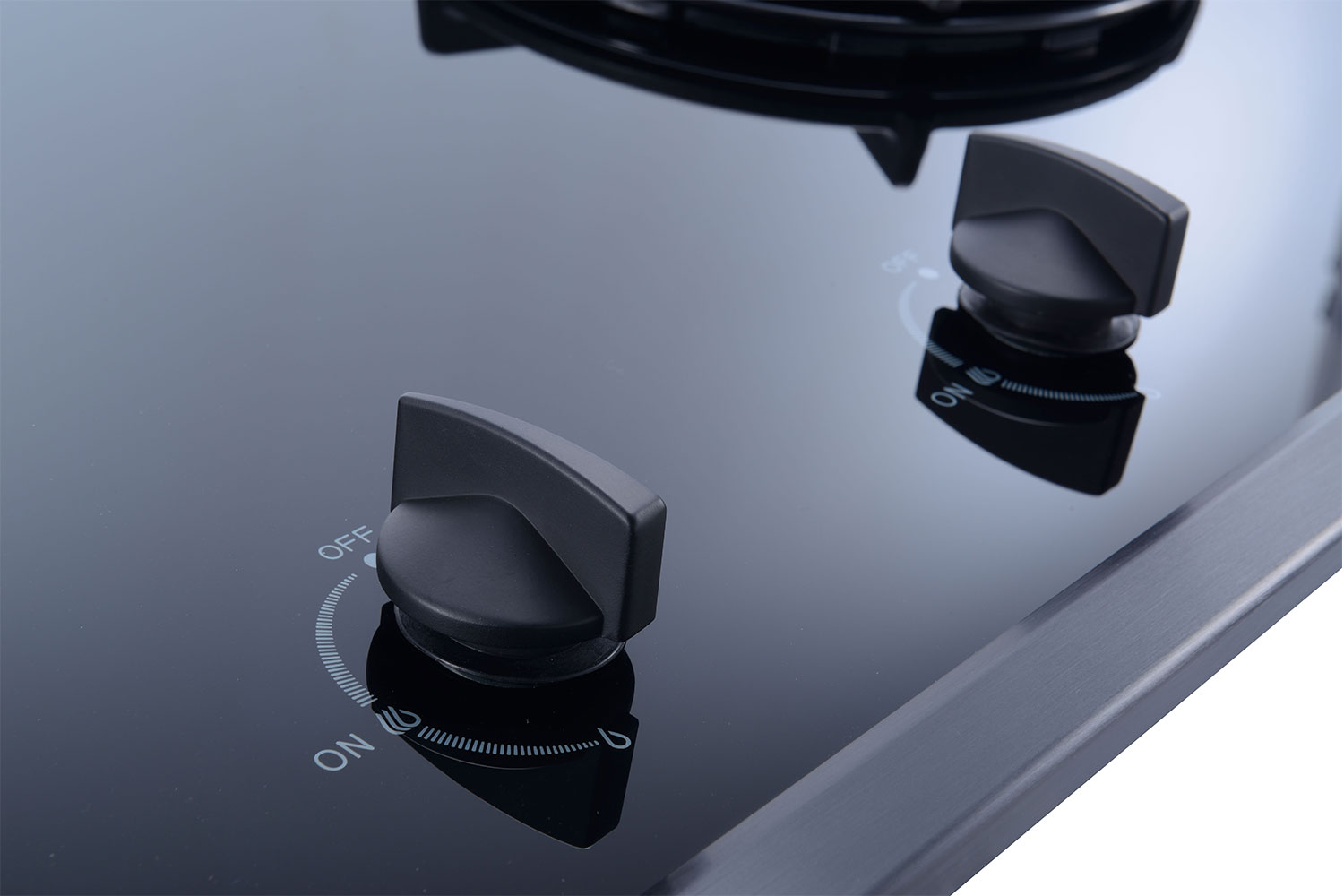

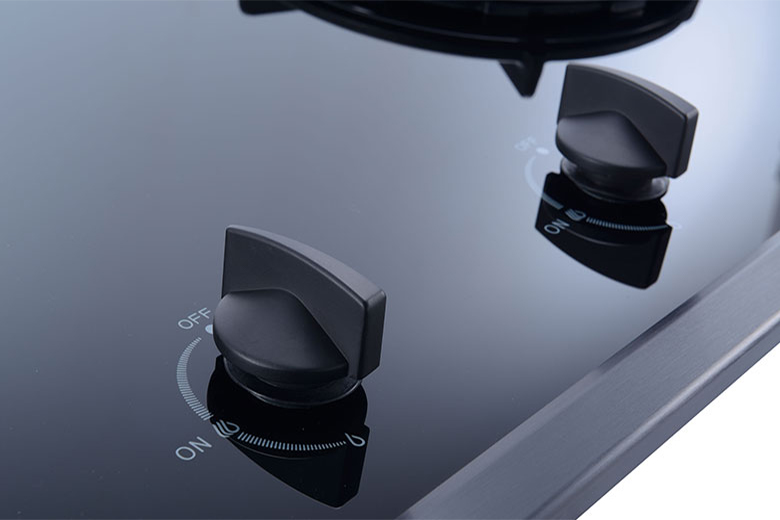

Control Panel Knobs
Safety Device Yes
Pan Support Cast Iron
Flexible Cut-Out No
Product Weight

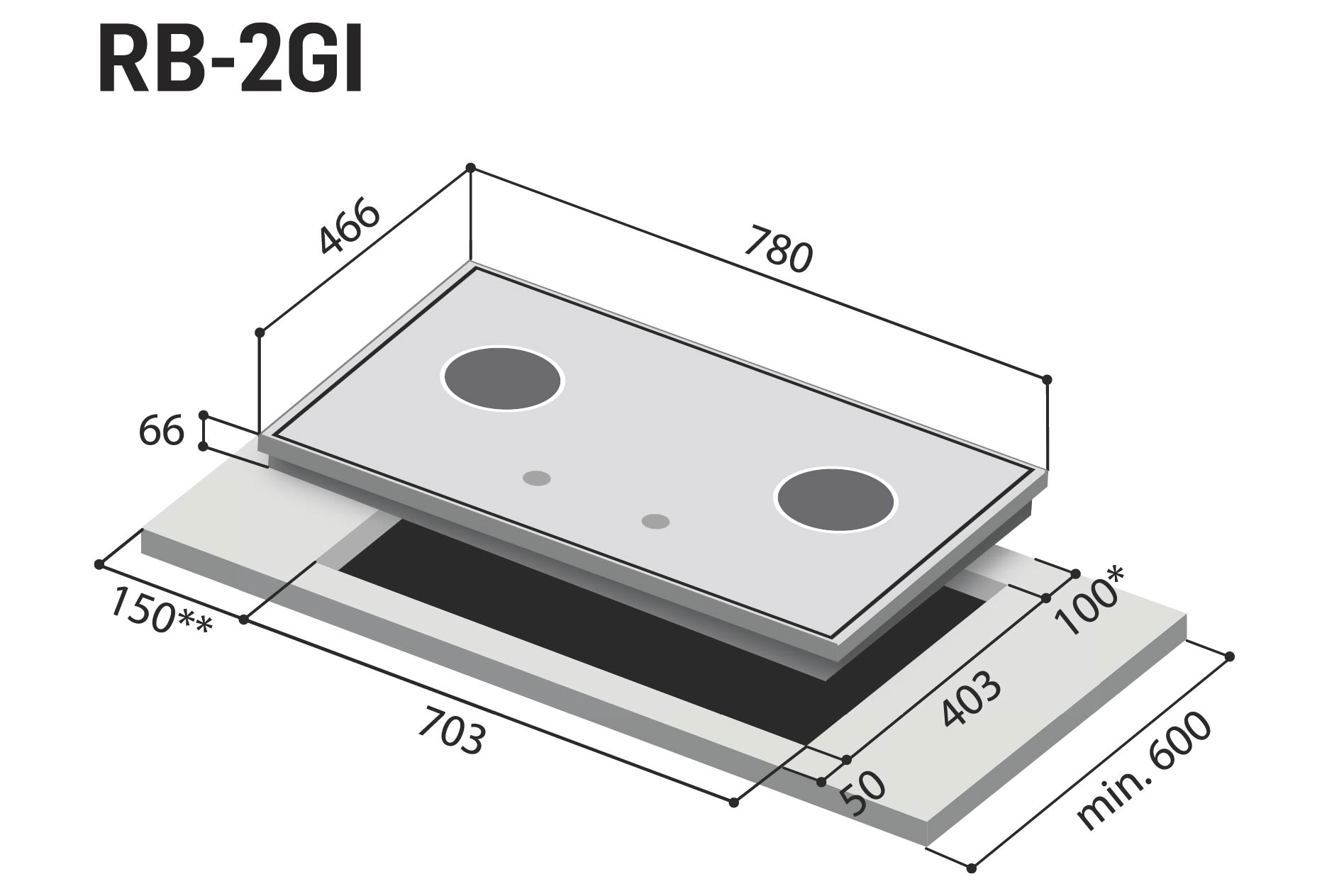

Product Size
(W x D x H) (cm)
78 x 46.6 x 6.6
Cut-Out Size
(W x D) (cm)
70.3 X 40.3
Package Weight (kg) 15.8
Package Size
(W x D x H) (cm)
83 x 51 x 19
